Project CAM Corvette: Part 4
RACER covered the fourth stage of its Project CAM Corvette build on April 16, 2020, and a Granatelli Motor Sports throttle body made the upgrade list. The car is a Classic American Muscle CAM-S powered by a twin-turbo 427ci V8. Part 4, written by Jason Isley, moves past the long-block and into the parts that bolt onto it.
New Heads Meant a New Intake
According to the article, the team swapped the stock cathedral-port LS6 heads for CNC-ported LS9 heads from GM Performance Parts. Because the LS9 heads have rectangular ports, the old intake no longer matched, so the team moved from a FAST LSX 92mm manifold to the larger FAST LSXR 102mm.
RACER reports that the builders chose the short "Race" runners. That choice gives up some low-end torque in exchange for roughly 15 to 30 more horsepower and a power peak 1,000 to 2,000 rpm higher. With 427 cubic inches and two turbos, the team was not worried about bottom-end grunt.
A Granatelli 103mm Throttle Body
The engine had been running a dated custom throttle body from the Lingenfelter shop, and the article says it was far too small for the new manifold. The search for a replacement led to Granatelli Motor Sports, which recommended its 103mm LSX drive-by-wire unit. RACER notes that it is machined from 6061-T6 billet aluminum and uses an electronic motor that can handle more than 25 lbs of boost. Because the newer unit uses updated GM connectors, the team also had to source a patch harness. For more on sizing and fitment, see our Throttle Body FAQ.
Valve Covers and a Triple-Disc Clutch

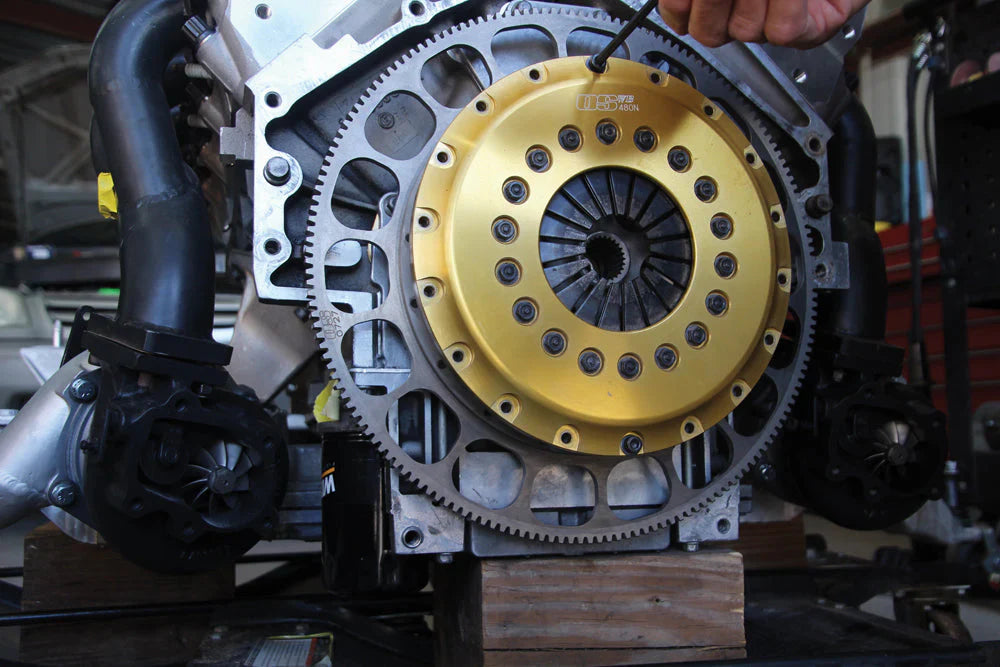

Comp Cams LS billet valve covers replaced the stock covers, adding clearance for the shaft-mount rocker system along with internal valve spring oiling. The previous clutch had slipped on the dyno, so the team installed an OS Giken R3C triple-disc kit with an aluminum cover, a steel flywheel and a "C" channel housing for added rigidity. According to the article, the new package took 12 lbs off the crank compared with the old twin-disc setup.
What Comes Next
The installment closes with the engine headed back into the car, with the fuel injectors, fuel rail and ignition coils still on the to-do list.
Read the full article at RACER
