Granatelli 12" GM LS/LT 0-Ohm Red Spark Plug Wires – 28-1629SL-R
Granatelli 12" GM LS/LT 0-Ohm Red Spark Plug Wires – 28-1629SL-R
SKU:28-1629SL-R
In Stock—More than 10 available
Prequalify Now
GRANATELLI 0-OHM IGNITION TECHNOLOGY
SOMETIMES THE RIGHT SPARK PLUG WIRE ISN’T MORE COMPLICATED — IT’S JUST LONGER.

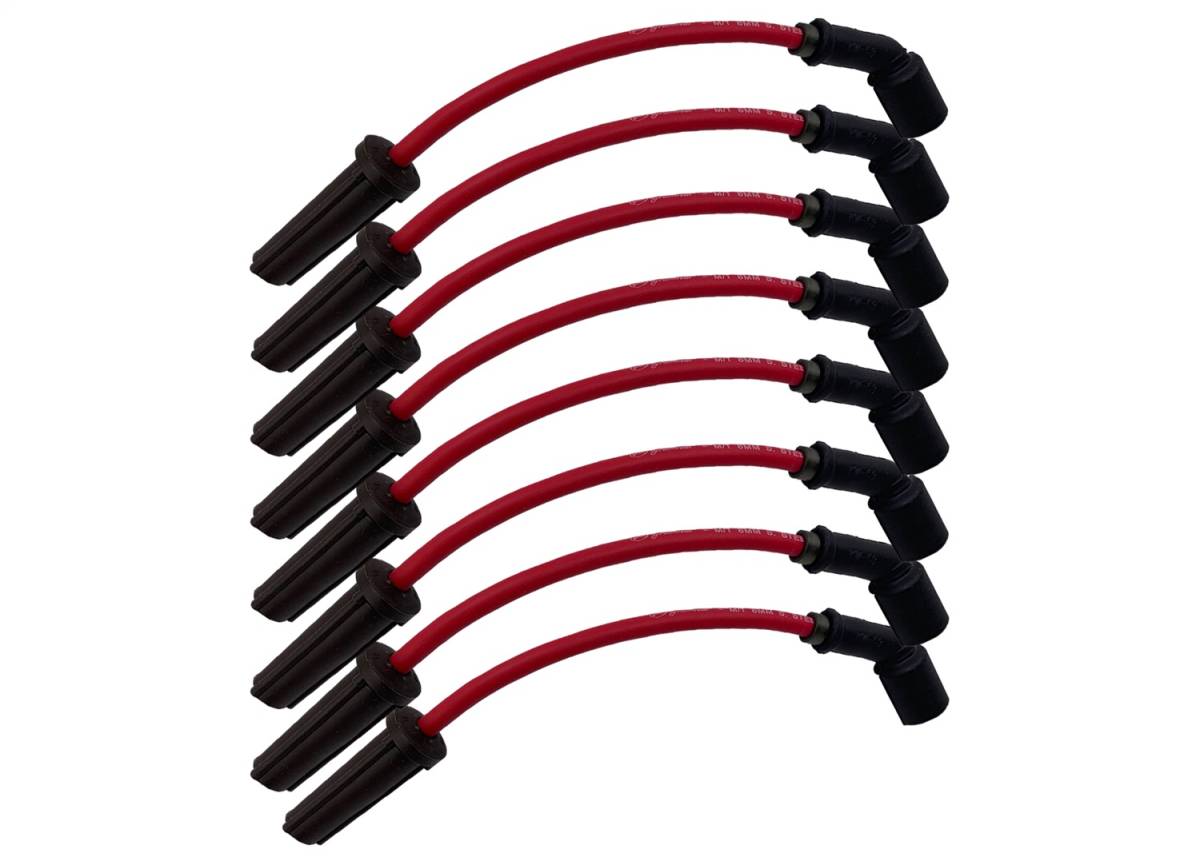

The Granatelli 28-1629S-R 12" Red 0-Ohm Spark Plug Wire Set is designed for compatible GM LS & LT coil-near-plug ignition systems that need additional routing length between the ignition coil and spark plug.
Each wire uses Granatelli’s patented 0-Ohm conductor technology to minimize electrical resistance while maintaining EMI/RFI suppression for modern electronic engine-management systems.
|
12"
BOOT-TO-BOOT LENGTH
|
0 OHMS
LOW RESISTANCE
|
8MM
RED WIRE
|
LS & LT
GM V8 APPLICATIONS
|
Why the 12-Inch Length?
The 12-inch boot-to-boot configuration provides additional routing flexibility when the ignition coils sit farther from the spark plugs, the engine layout requires a longer path, or shorter 8" and 10" wires create unnecessary tension on the terminals.
The Real Upgrade: A Better Electrical Path
Spark plug wires do not create ignition energy—the ignition coil does. The wire’s job is to transfer that energy to the spark plug with as little unnecessary loss as possible.
Granatelli’s 0-Ohm spark plug wire technology minimizes resistance while its patented EMI/RFI suppression system helps protect ECUs, sensors, fuel-injection systems and other vehicle electronics from unwanted electrical interference.
Good Choice For
✓ GM LS & LT builds requiring additional wire length • ✓ Street performance • ✓ Naturally aspirated engines • ✓ Turbocharged applications • ✓ Supercharged builds • ✓ Nitrous combinations • ✓ Custom coil and wire routing
Key Features
|
✓ 0-Ohm Conductor Technology Minimizes electrical resistance between the ignition coil and spark plug. |
✓ 12" Overall Length Additional reach for applications requiring more routing flexibility. |
|
✓ Patented EMI / RFI Suppression Designed for compatibility with modern electronic ignition and engine-management systems. |

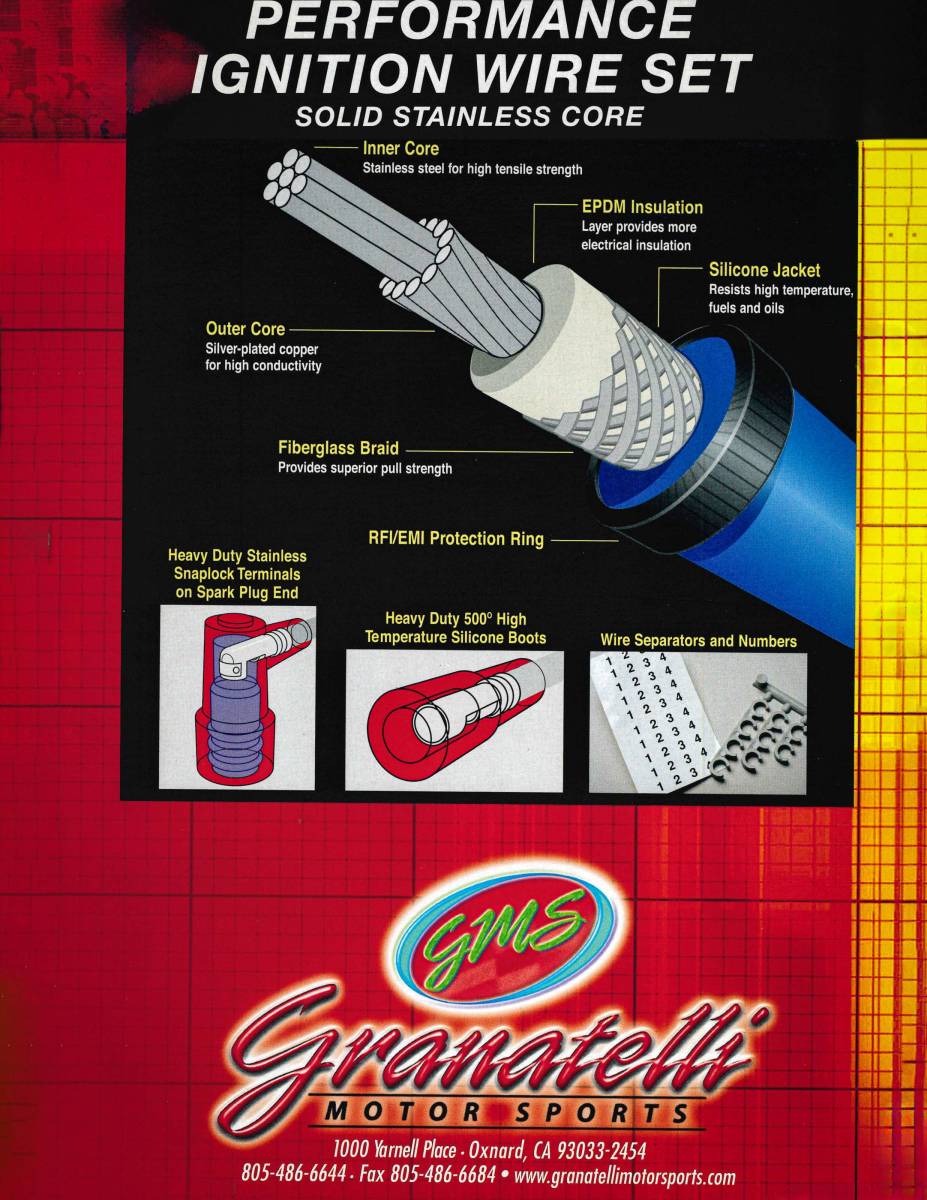

✓ 8mm Performance Construction Fiberglass-reinforced wire construction with silicone boots. |
|
✓ Stainless Conductor Components Solid stainless connector cable and secure snap-lock spark plug connections. |
✓ Complete V8 Set Includes eight pre-assembled spark plug wires. |
Compatible GM LS & LT Applications
Designed for compatible GM coil-near-plug ignition systems that use the correct 12-inch wire length and boot configuration. Common LS-family applications include:
| LS1 / LS6 | LS2 / LS3 | LS7 / LS9 | LSA / LSX |
| LQ4 / LQ9 | Compatible LS & LT Coil-Near-Plug V8s | ||
Common Engine Sizes
| 4.8L / 5.3L | Compatible LS-based truck and SUV applications using the correct 12" configuration |
| 5.7L | LS1 / LS6 applications |
| 6.0L | LS2, LQ4, LQ9 and compatible LS applications |
| 6.2L | Compatible LS & LT applications using the correct wire geometry |
| 7.0L | LS7 applications |
Product Specifications
| Part Number | 28-1629S-R |
| Product Type | Performance Spark Plug Wire Set |
| Wire Length | 12" Boot-to-Boot |
| Wire Diameter | 8mm |
| Wire Color | Red |
| Boot Color | Black |
| Resistance | 0 Ohms / Ft. |
| Conductor Style | Solid Stainless Core / Connector Cable |
| RFI / EMI Suppression | Yes – Patented Suppression Technology |
| Quantity | Set of 8 |
| UPC | 802735039726 |
Important Fitment & Heat Information
Fitment: Engine family or displacement alone does not guarantee physical fitment. Verify your existing wire length, coil location, spark plug boot configuration and routing before ordering.
Heat Protection: The 28-1629S-R is the standard performance-wire configuration. If the wire or boot will sit extremely close to headers, turbo components or other intense heat sources, choose one of Granatelli’s dedicated high-temperature or fire-sleeved wire sets instead.
