3 Inch Electric Exhaust Cutout Guide: How to Choose, Install and Use One the Right Way

A 3 inch electric exhaust cutout lets you change your exhaust from a quiet cruise to an open-header roar with a switch on the dash. Most product pages, however, stop at "universal fit" and a spec list. They don't tell you whether 3" is actually the right size, where the valve should go, or what happens if you get pulled over.

This guide covers all of it. It explains how electric cutouts work, how to size one, weld-in versus slip-fit, correct placement, real dyno results, the federal and state legal picture, and how to choose a kit that lasts.

What Is a 3 Inch Electric Exhaust Cutout?

An electric exhaust cutout is a motorized butterfly valve mounted on a branch of your exhaust. When the valve is closed, exhaust flows through the mufflers as usual. When you open it, gases exit through the branch before reaching the mufflers, which raises volume and reduces restriction. The "3 inch" refers to the diameter of the pipe the cutout mates to.

How the valve works

Inside the cutout body, a butterfly plate rotates on a shaft. A small 12-volt DC gear motor drives that shaft, and a switch inside the cab controls the motor. Because the motor can stop at any point in its travel, most electric cutouts let you run fully closed, fully open, or anywhere in between.

Electric vs. manual vs. vacuum cutouts

• Manual (block-off plate): The cheapest option and the most reliable, with no motor or wiring. However, you have to get under the car to remove the plate, so it suits dedicated track days.
• Cable-operated: Works from the cab, but the cables corrode and bind over time.
• Vacuum/pressure-controlled: Opened by vacuum instead of a motor on the cutout. Granatelli Motor Sports vacuum kits include their own vacuum pump and a wireless remote, so they don't depend on engine vacuum and work on boosted and big-cam engines.
• Electric: The most control and the quickest response. Consequently, it has become the default for street/strip builds.

Is a 3 Inch Cutout the Right Size?

Measure, don't guess

Size the cutout to the pipe it joins, not to the engine. Measure the outside diameter of your exhaust tubing at the planned mounting point with calipers or a tape. If the tubing measures 3.0", a 3 inch exhaust cutout is the correct match. Stepping down to a smaller cutout adds a restriction exactly where you want flow. Stepping up means fabricating reducers, which adds cost and leak points. Measured 2.5"? See our 2.5 Inch Exhaust Cutout Guide.

Single vs. dual

On a true dual exhaust, run one cutout per side to keep flow and sound balanced. On a single exhaust, or downstream of a merge, one cutout is enough. For that reason, Granatelli Motor Sports offers most 3" sizes as single kits and as dual kits.

Weld-In vs. Slip-Fit, Stainless vs. Mild Steel

In short, if the vehicle sees rain or winter roads, stainless steel is worth the premium. If you can't weld, slip-fit gets you running in an afternoon.

What Separates a Good Kit from a Cheap One

Shopping results for "3 inch electric exhaust cutout" range from bare motors under $50 to complete dual kits over $500. To compare them fairly, check these six points:

1. Body material. CNC-machined 6061 aluminum holds its shape under heat cycling better than thin castings.
2. Motor and gears. Look for a gear-reduction DC motor with steel gears. Weak motors stall when carbon builds up on the butterfly.
3. Switch logic. Many kits use a momentary switch you must hold until the valve finishes traveling. Granatelli kits use a Smart-Chip one-touch rocker: tap once and the valve completes its travel, which also reduces gear wear.
4. Butterfly and shaft. Stainless steel parts resist warping and seizing.
5. Turndown adjustability. A 360° rotating V-band clamp lets you aim the turndown away from fuel lines, the floor and your tires.
6. Wiring and support. Look for a weatherproof harness, a clear diagram, a US-based phone line, and a warranty you can extend.

Where to Install an Electric Exhaust Cutout

Placement determines sound, power, safety and whether your engine runs correctly.

Keep it away from the heads and O2 sensors

Mount cutouts at least 18 inches from the cylinder head to avoid reversion, and at least 18 inches from O2 sensors on fuel-injected engines so sensor readings aren't skewed (Speedway Motors). Above all, never mount a cutout upstream of a catalytic converter. See the legal section below.

Before or after the X-pipe or H-pipe

Mounting closer to the headers favors maximum drag-strip power but increases the chance of flames. Mounting after the X-pipe or H-pipe gives the best sound and keeps the benefit of the balance pipe. For most street/strip cars and trucks, just behind the transmission and after the crossover is the sweet spot.

Route the dump outward and protect everything nearby

Don't dump exhaust under the center of the vehicle, where fumes can collect and enter the cabin. Instead, route the outlet toward the rocker panel with a turndown, and shield nearby wiring, fuel, brake and transmission lines. In addition, confirm the butterfly clears the turndown at full open; a short spacer pipe prevents the valve from hanging up.

Installation Overview

Always follow the instructions supplied with your kit. In outline, a typical install looks like this:

1. Mock up. Choose a location that meets the distance rules above and has clearance for the motor and turndown.
2. Mark and cut. Mark the pipe, then cut the opening or the section to be replaced.
3. Mount the body. Weld or clamp it in place. On weld-in kits, tack first, check alignment, then finish-weld.
4. Fit the turndown. Attach it with the V-band clamp and rotate it to aim away from lines and tires.
5. Secure the motor. Bolt it on with medium thread locker so it can't vibrate loose.
6. Wire it. Run the harness to the switch, keep it clear of the pipe, use loom near heat, and fuse the circuit as the diagram shows.
7. Test and leak-check. Cycle the valve fully open and closed with the engine off, then check for leaks with the engine running.

Do Electric Exhaust Cutouts Add Horsepower?

They can, and sometimes by a meaningful margin. In one dyno test cited by Speedway Motors, a big-block Chevy made 790 hp on open headers, dropped to 721 hp with a 3-inch exhaust attached, and recovered to 782 hp with the cutouts open: a 61 hp swing at the flip of a switch. Gains on a mild street engine will be smaller, and results depend on your headers, cam and tune.

Granatelli Motor Sports makes no fuel-economy claims for cutouts, and you should be skeptical of anyone who does without data.

Are Electric Exhaust Cutouts Legal?

This is the question most product pages skip. The honest answer is that it depends on where the cutout sits, where you drive, and your state's laws.

Federal emissions rules

The EPA's November 2020 tampering policy treats emissions tampering and aftermarket defeat devices as an enforcement priority. In practice, a cutout mounted downstream of all catalytic converters doesn't remove emissions equipment. Any installation that lets exhaust bypass a catalytic converter, on the other hand, is tampering.

State noise and equipment laws

SEMA describes U.S. exhaust noise rules as a 50-state patchwork, with many states using vague "excessive noise" standards instead of an objective test. Many state statutes also specifically name "cutout, bypass, or similar device." The SEMA Action Network keeps a state-by-state compilation, and it is the best starting point for your state.

California in particular

California Vehicle Code 27150 requires registered vehicles to run an adequate muffler and prohibits equipping the exhaust with a cutout, bypass or similar device. It exempts passenger vehicles operated off the highway in organized racing or competitive events under a recognized sanctioning body or local permit. Separately, aftermarket exhaust in California must not exceed 95 decibels under the SAE J1169 test, and officers can issue fines of up to $1,000 instead of fix-it tickets.

Practical guidance

• Mount the cutout after the catalytic converters, every time.
• Keep the valve closed on public roads in any state that bans cutouts, and use it at sanctioned events.
• If you sell or install cutouts professionally, keep documentation of where and how they're installed.
• When in doubt, check your state's statute directly. This guide is general information, not legal advice.

Care and Maintenance

• Cycle the valve regularly, even if you rarely open it, so carbon doesn't lock the butterfly.
• Re-check fasteners after the first few heat cycles, especially slip-fit clamps and motor bolts.
• Inspect the harness for melted loom or chafing near the pipe at every oil change.
• Clean and dielectric-grease connectors before winter on vehicles that see wet roads.

How Much Does a 3 Inch Electric Exhaust Cutout Cost?

Based on Google Shopping listings in October 2026, pricing falls into rough tiers:

• Replacement motor only: about $47–$105
• Single 3" kit, import: about $67–$135
• Single 3" kit, premium stainless steel or CNC aluminum: about $200–$335
• Dual 3" kits: about $290–$660

Cheaper kits save money upfront. However, the difference tends to show up later in motor failures, rattles and leaks, which is why the checklist above matters more than the sticker price.

Granatelli Motor Sports 3" Electric Exhaust Cutout Options

The 307530 kit includes the cutout, polished 45° turndown, V-band clamp, motor, wiring harness, hardware and gaskets. It carries a 90-day warranty with optional 1-, 2- or 3-year extended coverage, and ships free on orders over $100.

Frequently Asked Questions

Are electric exhaust cutouts illegal?

On public roads, many states prohibit them. California, for example, bans cutouts on registered vehicles outright. Off-highway use at sanctioned events is generally allowed, so check your state's statute.

Do electric exhaust cutouts actually work?

Yes. Opening the valve reduces backpressure and raises volume, and dyno tests show measurable gains on high-output engines.

Can an exhaust cutout hurt my engine?

Not when installed correctly. Problems come from mounting too close to the heads (reversion) or O2 sensors (poor fuel trims), and from dumping exhaust where fumes reach the cabin.

Single or dual cutouts?

Match your exhaust layout: one per side on a true dual, one total on a single or post-merge system.

Can I install one myself?

Slip-fit kits are a reasonable DIY job with basic tools. Weld-in kits need welding equipment or a muffler shop.

Do I need a relay?

Follow your kit's wiring diagram. Some kits power directly through the switch circuit, while others specify a relay and fuse.

The Bottom Line

The right 3 inch electric exhaust cutout matches your pipe diameter, mounts after the cats and at least 18" from the heads and sensors, dumps outward, and uses a motor and switch built to survive heat and carbon. Get those right, and you get a quiet daily driver plus open-exhaust sound and power on demand at the track.

Keep reading: Shop all Granatelli exhaust cutouts · What size exhaust cutout do I need? · Exhaust Cutout FAQ

Shop Granatelli Motor Sports

View the Granatelli 307530 3" Stainless Steel Weld-In Electric Exhaust Cutout Kit

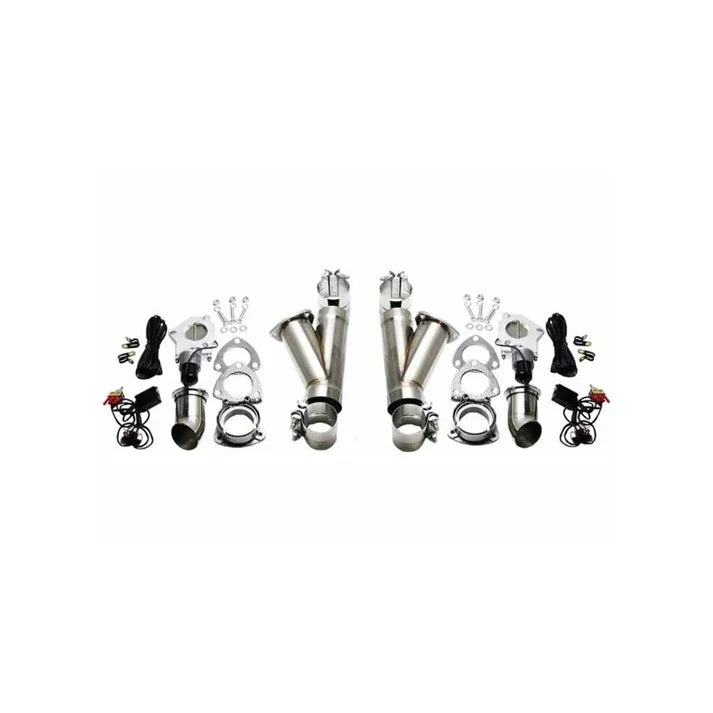

View the Granatelli 307530K Dual 3" Weld-In Kit
