Spark Blowout or Something Else? How to Diagnose a High-RPM Misfire Before Replacing Coils

An engine that pulls cleanly at light throttle but breaks up under boost or high RPM often gets blamed on the coils immediately. Sometimes that is correct, but many other problems create nearly identical symptoms.

Diagnosing the system before replacing parts saves time and helps ensure a performance coil upgrade is solving the actual limitation.

What Spark Blowout Means

As cylinder pressure increases, the voltage required to jump the spark-plug gap can increase. If the ignition system cannot consistently initiate the spark, the engine can misfire under load even though it runs normally at idle.

Check the Spark Plugs First

• Correct heat range
• Correct gap for the boost level
• No cracked insulators
• No fuel or oil fouling
• Consistent appearance across cylinders

Verify Fuel Supply

A lean condition from low fuel pressure, a failing pump or an injector problem can feel like ignition breakup. Log fuel pressure and commanded/actual lambda when possible before blaming the coil.

Inspect Coil Connectors and Grounds

Heat-damaged connectors, loose terminals, poor grounds and harness tension can create intermittent ignition faults that become more visible as engine movement and vibration increase.

Look at the Pattern

If the misfire always appears at the same boost pressure, plug gap and ignition demand deserve close attention. If it follows one cylinder regardless of load, swap-testing or cylinder-specific diagnostics may point to a component or wiring issue.

When Higher-Output Coils Make Sense

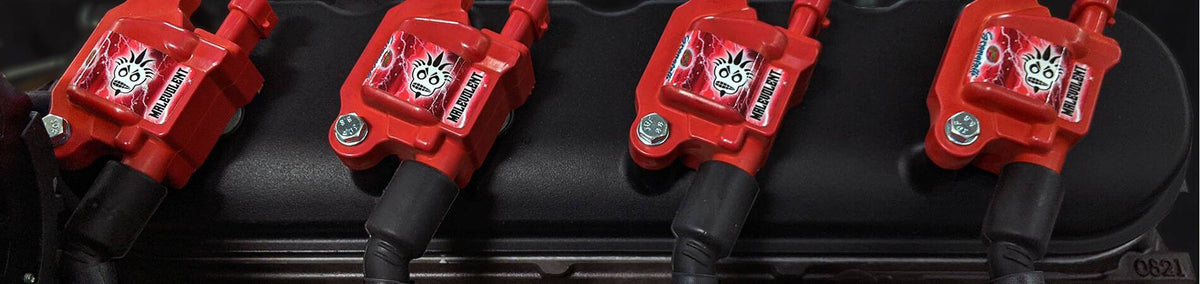

Once plugs, fuel, wiring and calibration are confirmed, a higher-output matched coil set can provide additional ignition headroom for high-compression, supercharged, turbocharged and nitrous combinations.

Retest After Every Change

Change one variable at a time when possible. A smaller plug gap, new plug set, coil change and tune revision performed simultaneously make it difficult to know what actually fixed the problem.

The Bottom Line

Do not treat every high-load misfire as proof of a bad coil.

Diagnose plugs, fuel pressure, wiring, grounds and calibration first, then choose the appropriate Granatelli coil series when the engine truly needs additional ignition capability.
