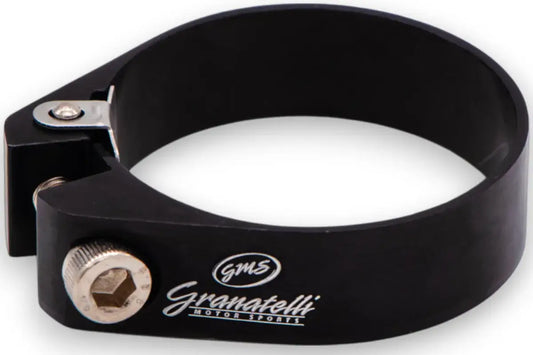

How to Measure for the Correct Granatelli Billet Hose Clamp Size

The most common mistake when ordering a billet hose clamp is using the pipe size instead of measuring the actual outside diameter of the hose.

Granatelli billet clamps are sold by real clamping range. That means the correct way to select one is to measure the completed hose connection exactly where the clamp will sit.

Step 1: Install the Hose on the Tube

Measure the hose in the same condition it will be used. A silicone coupler expands slightly when installed over aluminum or stainless tubing, so measuring it loose on the bench can give you the wrong number.

Step 2: Measure the Outside Diameter

Use a caliper when possible. Measure across the outside of the hose at the clamp location. If you do not have a caliper, a flexible tape can be used to measure circumference, but direct diameter measurement is more accurate.

Step 3: Compare the Measurement with the Clamp Range

Choose a clamp whose published minimum and maximum range comfortably contains your measured outside diameter. Avoid selecting a clamp that is already at the absolute end of its adjustment range.

Granatelli offers multiple billet clamp sizes from small intake and cooling connections through large intercooler and charge-pipe applications.

Why a 3-Inch Coupler Does Not Mean a 3-Inch Clamp

A 3-inch coupler normally describes the inside diameter needed to fit a 3-inch tube. Once wall thickness is added, the outside diameter is larger. That is the dimension the clamp actually sees.

The same rule applies to 2.5-inch, 3.5-inch and 4-inch charge pipes.

Common Sizing Mistakes to Avoid

• Ordering by tube diameter instead of hose outside diameter
• Measuring the coupler while it is not installed
• Ignoring hose wall thickness
• Choosing a clamp at the extreme end of its range
• Using a damaged or oil-soaked coupler and expecting the clamp to fix it

Finishes and Engine-Bay Appearance

Once size is correct, choose the finish that fits the build. Granatelli billet clamps are available in multiple anodized and polished options, allowing matching hardware across intake, cooling and custom plumbing systems.

The Bottom Line

Measure first and order second. The actual installed outside diameter of the hose is the number that matters.

Taking a few minutes to measure correctly helps the Granatelli billet clamp apply its holding force where it was designed to operate.
