Piston vs. Water-Cooled Diaphragm Wastegates: Which Granatelli Design Should You Use?

Granatelli Motor Sports builds external wastegates in two actuator designs: piston-actuated and water-cooled diaphragm. Both come in 44mm, 50mm and 60mm, both mount with V-band flanges, and both do the same job: open a valve that lets exhaust bypass the turbine so boost stops climbing.

The difference is what moves the valve and how each design deals with heat. If you have not picked a valve size yet, start with 44mm vs. 50mm vs. 60mm Wastegate: What Size Granatelli Wastegate Do You Need? and come back here. This article is only about choosing the actuator.

How Each Actuator Opens the Valve

Diaphragm actuation

In a diaphragm gate, a flexible membrane sits in the top housing with the spring stack on top of it. Boost pressure from your reference line pushes on the bottom of the diaphragm. When that force beats the spring preload, the diaphragm lifts the valve stem and exhaust starts bypassing the turbine. Add pressure to the top chamber with a boost controller and it takes more boost to open the valve. It is the layout most tuners and most boost controllers are built around, which is why it remains the default on a lot of custom turbo systems.

Piston actuation

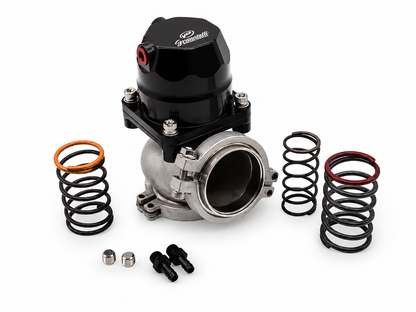

Granatelli's piston series replaces the flexible diaphragm with a mechanical piston. Pressure acts on the piston instead of on a membrane, and the piston moves the valve. The listing for the 50mm piston wastegate (540203) sums up the idea: no diaphragm, just a piston built to take the heat. The piston gates use stainless steel bases and black anodized aluminum top caps, and they are aimed at high-heat turbo systems, street/strip, drag racing and performance diesel applications.

Why Heat Drives This Decision

An external wastegate bolts to the hottest part of the car: the turbo manifold, usually inches from the turbine housing. The valve and seat live in exhaust gas. The actuator sits right above them. Any actuator part that does not like heat is the part that limits the gate.

Granatelli attacks that problem two ways. The diaphragm line keeps the conventional diaphragm and surrounds the actuator area with coolant passages, so engine coolant carries heat away from the top housing. The piston line removes the flexible diaphragm from the design entirely. Neither approach is "better" on every car. What matters is which one fits your packaging, your plumbing and the way the car is used.

Granatelli Piston vs. Water-Cooled Diaphragm Wastegates

Prices are as of October 2026. Check each product page for the current price and full contents before ordering.

When to Choose the Piston Gate

• You do not want to run coolant lines. Tapping into the cooling system adds hoses, fittings and a possible leak point near the hot side. The piston gate takes that off the table.
• The build sees a lot of heat. Drag cars, high-exhaust-flow engines and performance diesel trucks are exactly what Granatelli lists the piston line for.
• You specifically want piston-style control. Some builders simply prefer it. That is a legitimate reason.

When to Choose the Water-Cooled Diaphragm Gate

• You want the conventional actuator. If your tuner or boost controller instructions are written around a diaphragm gate, staying with one keeps setup familiar.
• The gate is packaged tight against the turbo or manifold. The coolant passages are there to manage actuator temperature where radiant heat is worst.
• Budget matters. In every size, the water-cooled diaphragm gate is roughly $108 to $112 less than the piston gate at October 2026 pricing.

Install Notes That Apply to Each Design

Ports are not universal. Port functions depend on the actuator design. Do not assume the top and lower ports on a piston gate work like the ports on a diaphragm gate you ran before. Use the diagram for your exact part number before connecting pressure or leaving a port open.

Do not block the coolant ports on a water-cooled gate unless the product documentation for that model explicitly allows it. If you buy the water-cooled design, plan the coolant routing when you plan the manifold.

Springs set the floor, not the ceiling. With either design, the installed springs establish the mechanical base boost, and a boost controller can add pressure above that when the system is plumbed and tuned correctly. Most setups cannot reliably run below the spring. Pick a spring combination that matches the lowest boost the engine can safely run, and only use combinations approved for that specific gate. Our Wastegate Boost Spring and PSI Guide covers spring selection in detail.

Do not swap springs between designs or sizes. A spring from a 44mm gate is not automatically correct in a 60mm gate, and a diaphragm spring is not automatically correct in a piston gate.

Keep the reference hose away from the turbine housing. A melted or slipped reference line means lost boost control and possible overboost, whichever actuator you choose.

Common Mistakes

• Choosing the actuator first and the valve size second. A great actuator on an undersized valve still creeps.
• Mixing designs on a twin-gate system. Run the same part number on both banks so both gates respond the same way.
• Ordering the wrong 44mm, 50mm or 60mm. Each size exists in both designs, and the listings note that the piston and water-cooled versions are different parts. Check the part number, not just the size.

For the bigger picture on how the wastegate and blow-off valve split the work in a turbo system, read Wastegate vs. Blow-Off Valve. Quick answers on springs, ports and placement are on our Wastegate FAQ.

Frequently Asked Questions

Is a piston wastegate better than a diaphragm wastegate?

Not on every car. The piston design removes the flexible diaphragm and is aimed at high-heat, drag and diesel use, while the water-cooled diaphragm design keeps the conventional actuator and manages heat with coolant. Choose by packaging, plumbing and how the car is used, after the valve size is right.

Do I have to hook up coolant lines on a water-cooled wastegate?

Plan on it. Only run a water-cooled gate with its coolant connections blocked if the product documentation for that exact model explicitly permits it. Otherwise follow the specified coolant routing.

Can I use a boost controller with a Granatelli piston wastegate?

Yes, a boost controller can add pressure above the base spring setting on either design when the system is plumbed and tuned correctly. Port functions differ by actuator design, so use the plumbing diagram for your exact wastegate part number.

Are the springs interchangeable between Granatelli piston and diaphragm wastegates?

Do not assume they are. Use only the springs and spring combinations approved for the specific wastegate model and size.

Do Granatelli piston and water-cooled wastegates come in the same sizes?

Yes. Both lines are offered in 44mm, 50mm and 60mm with V-band mounting. The piston versions are part numbers 540261, 540203 and 540260, and the water-cooled diaphragm versions are 540244, 540202 and 540259.
