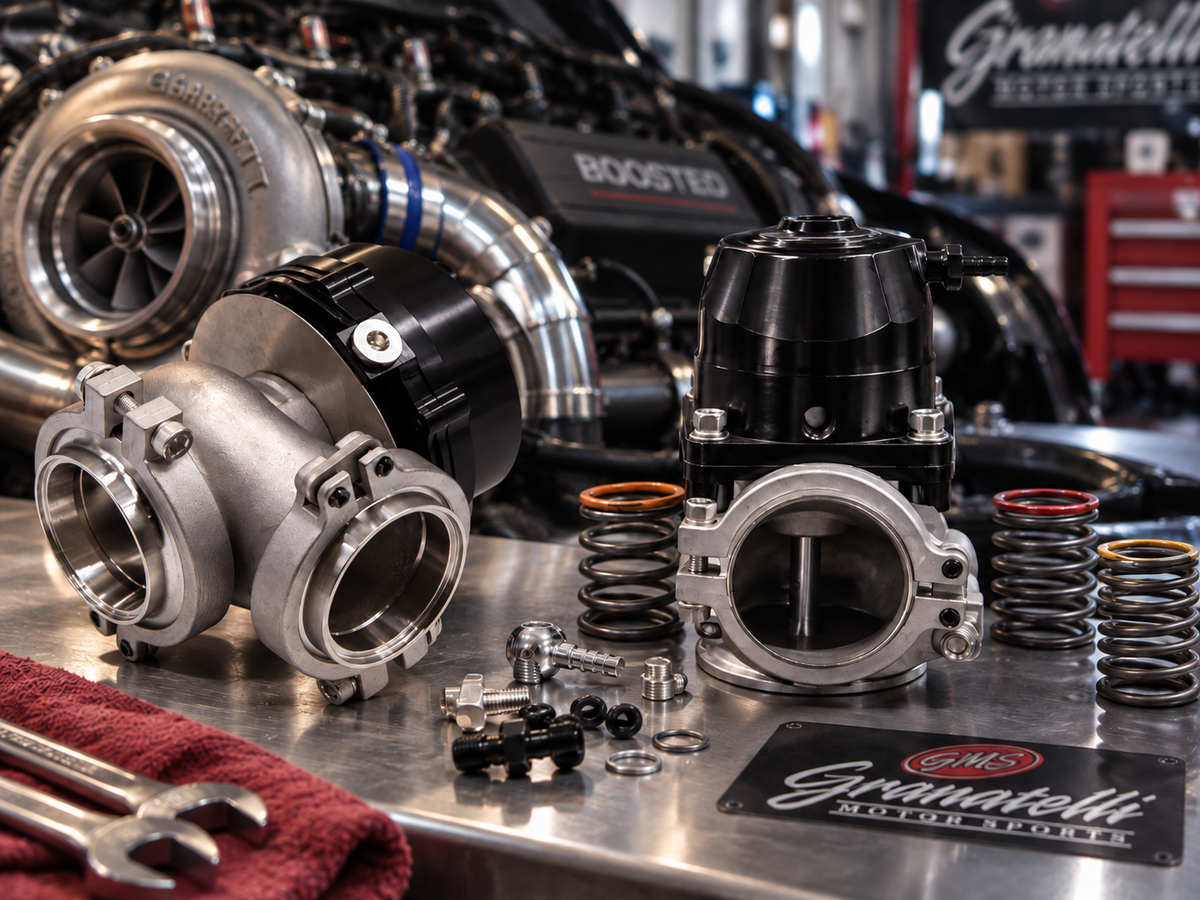

Wastegate vs. Blow-Off Valve: What They Do and Why Your Turbo System Needs Both

If you're building a turbocharged vehicle, two of the most important boost-control components are the wastegate and the blow-off valve (BOV).

Both deal with pressure in a forced-induction system, but they perform two completely different jobs. Understanding the difference can help you build a turbo system with better boost control, faster response and improved reliability.

Granatelli Motor Sports offers a range of external turbo wastegates and turbo system accessories and blow-off valves for street, street/strip and high-horsepower racing applications.

What Does a Wastegate Do?

A turbo wastegate controls the amount of exhaust energy that reaches the turbocharger's turbine.

As exhaust gases leave the engine, they spin the turbine wheel. The more energy reaching the turbine, the faster the turbocharger can spin and the more boost it can potentially produce.

The wastegate regulates this process by opening and allowing some exhaust gas to bypass the turbine. This helps maintain the desired boost pressure instead of allowing turbo speed and boost to continue climbing.

In simple terms: the wastegate controls boost from the exhaust side of the turbo system.

Why External Wastegate Size Matters

An external wastegate must be capable of bypassing enough exhaust flow to control the turbocharger. The proper size depends on the entire engine and turbo combination.

Important factors include:

• Engine displacement
• Turbocharger size
• Horsepower level
• Single-turbo or twin-turbo configuration
• Desired boost pressure
• Exhaust manifold design
• Wastegate location
• Exhaust flow

If the wastegate cannot bypass enough exhaust, boost pressure may continue increasing above the intended target. This is commonly called boost creep.

Granatelli 44mm, 50mm and 60mm External Wastegates

Granatelli Motor Sports offers multiple external wastegate sizes so builders can select the proper boost-control solution for their turbo combination.

Granatelli 44mm Piston-Actuated External Wastegate – 540261

The Granatelli 44mm piston-actuated external wastegate provides a compact option for turbo systems where engine-bay space and packaging are important.

It uses piston actuation instead of a traditional flexible diaphragm and features V-band inlet and outlet connections.

View the Granatelli 44mm Piston Wastegate – 540261

Granatelli 50mm Piston-Actuated External Wastegate – 540203

For applications requiring additional exhaust bypass capacity, the Granatelli 50mm piston wastegate provides increased flow while retaining a piston-actuated design.

The 50mm wastegate is designed for demanding street, street/strip, drag racing and performance turbo applications.

View the Granatelli 50mm Piston Wastegate – 540203

Granatelli 60mm Piston-Actuated External Wastegate – 540260

Large-frame turbochargers and high-exhaust-flow engine combinations may require even greater wastegate capacity.

The Granatelli 60mm piston-actuated external wastegate is designed for serious turbo systems requiring substantial exhaust bypass flow and consistent boost control.

Its large 60mm valve, piston-actuated design and V-band mounting make it well suited for high-horsepower turbo cars, drag racing applications and other high-flow combinations.

View the Granatelli 60mm Piston Wastegate – 540260

Piston Wastegate vs. Diaphragm Wastegate

Traditional external wastegates commonly use a flexible diaphragm to control valve movement. Granatelli also offers piston-actuated external wastegates.

Instead of relying on a traditional diaphragm, the piston series uses mechanical piston actuation to regulate exhaust bypass flow.

Granatelli also offers water-cooled diaphragm wastegates for builders who prefer a traditional diaphragm design with additional heat management around the actuator.

Granatelli Water-Cooled Wastegates

Wastegates operate extremely close to turbochargers, exhaust manifolds and other high-temperature components. Managing that heat can become important on tightly packaged and competition-oriented turbo systems.

Granatelli Motor Sports offers water-cooled diaphragm wastegates designed to help manage actuator temperature in demanding turbocharged applications.

Granatelli 44mm Water-Cooled Wastegate – 540244

The Granatelli 44mm water-cooled external wastegate combines compact packaging with a water-cooled diaphragm actuator, billet aluminum top and V-band mounting.

View the Granatelli 44mm Water-Cooled Wastegate – 540244

Granatelli 50mm Water-Cooled Wastegate – 540202

The Granatelli 50mm water-cooled wastegate increases exhaust bypass capacity while using a water-cooled diaphragm housing to help manage heat around the actuator.

View the Granatelli 50mm Water-Cooled Wastegate – 540202

What Does a Blow-Off Valve Do?

While the wastegate controls boost from the exhaust side of the turbocharger, a blow-off valve controls compressed air on the intake side.

Under boost, the turbocharger compressor forces air through the charge piping, intercooler and toward the throttle body.

When the driver suddenly lifts off the throttle, the throttle blade closes while the turbocharger is still spinning. The compressed air that was moving toward the engine suddenly has nowhere to go.

A blow-off valve opens and gives that trapped pressurized air an escape path.

This helps reduce compressor surge and helps protect the turbocharger.

What Is Turbo Compressor Surge?

Compressor surge can occur when pressurized air encounters a closed throttle and begins moving back toward the turbocharger compressor.

Instead of allowing that pressure wave to push back against the compressor wheel, a properly sized BOV can release the excess pressure when the throttle closes.

This becomes increasingly important as turbocharger size, boost pressure and airflow increase.

Granatelli 64mm Anaconda Blow-Off Valve – 540199

For serious forced-induction applications, Granatelli Motor Sports developed the 64mm Anaconda High-Flow Blow-Off Valve.

The Anaconda is designed for high-horsepower turbocharged and centrifugal-supercharged combinations that require substantial airflow capacity and rapid pressure relief.

Key features include:

• Massive 64mm high-flow valve design
• Billet 6061 aluminum construction
• Black anodized finish
• Adjustable diaphragm-over-piston design
• Dual 1/8-inch NPT reference ports
• High-flow pressure relief
• Designed to help reduce compressor surge
• Suitable for turbocharged and centrifugal-supercharged applications

The large 64mm valve provides the airflow capacity needed for serious forced-induction systems where a smaller blow-off valve may become restrictive.

View the Granatelli 64mm Anaconda Blow-Off Valve – 540199

Why Blow-Off Valve Size Matters

A blow-off valve must be capable of releasing the volume of compressed air produced by the turbo system.

As turbo size, boost pressure and horsepower increase, the amount of air that may need to be released during throttle lift also increases.

A high-flow blow-off valve can be especially valuable on:

• Large-frame turbochargers
• Twin-turbo engines
• High-boost combinations
• Large-displacement engines
• Drag racing vehicles
• Roll-racing cars
• High-horsepower street cars
• Centrifugal-supercharged vehicles

Wastegate vs. Blow-Off Valve: What's the Difference?

Component	Wastegate	Blow-Off Valve
Location	Exhaust side	Intake / charge side
Main Job	Controls exhaust flow around the turbine	Releases trapped compressed air
When It Operates	To regulate turbo boost	Primarily during throttle lift
Helps Control	Turbo speed and boost pressure	Compressor surge and trapped charge pressure

Do You Need Both a Wastegate and a Blow-Off Valve?

On most performance turbo systems, yes.

A wastegate and blow-off valve cannot replace one another because they perform completely different jobs.

The wastegate controls how much exhaust energy drives the turbocharger, while the blow-off valve manages compressed air when the throttle closes.

Using properly sized components on both sides of the turbo system helps improve boost control, pressure management and overall system consistency.

What Size Wastegate Do I Need?

There is no universal wastegate size that is correct for every turbo build.

A larger engine or turbocharger does not automatically mean that the largest wastegate is always the correct choice. Wastegate sizing depends on the complete combination.

Consider:

• Engine displacement
• Turbocharger size
• Desired boost level
• Exhaust manifold configuration
• Wastegate placement
• Single or twin wastegates
• Target horsepower
• Exhaust flow

Correct wastegate sizing and placement are essential for consistent boost control.

What Size Blow-Off Valve Do I Need?

BOV sizing also depends on the amount of airflow the forced-induction system is moving.

A moderate street turbo system may not require the same valve capacity as a large-frame turbo or high-horsepower twin-turbo combination.

For applications moving substantial volumes of compressed air, the Granatelli 64mm Anaconda BOV provides a high-flow option designed specifically for serious forced-induction applications.

Building a Better Turbo System

The turbocharger may receive most of the attention when planning a boosted engine, but controlling the turbocharger is just as important as selecting it.

A complete turbo system should consider:

• Turbocharger sizing
• Wastegate sizing
• Wastegate location
• Wastegate spring pressure
• Boost-control strategy
• Blow-off valve sizing
• BOV location
• Charge-pipe diameter
• Intercooler size
• Exhaust flow
• Engine displacement
• Horsepower target

Matching these components correctly can produce a turbo system that is easier to control, more responsive and better suited to the intended horsepower level.

Why Choose Granatelli Motor Sports Turbo Components?

Granatelli Motor Sports offers multiple turbo boost-control solutions for everything from street-driven performance cars to high-horsepower race vehicles.

The Granatelli turbo-control lineup includes:

• 44mm piston-actuated external wastegates
• 50mm piston-actuated external wastegates
• 60mm piston-actuated external wastegates
• 44mm water-cooled diaphragm wastegates
• 50mm water-cooled diaphragm wastegates
• 64mm Anaconda high-flow blow-off valve
• V-band flanges and clamps
• Turbo adapters
• Boost-control accessories

The Bottom Line: Wastegate vs. BOV

A wastegate and blow-off valve both help manage a turbocharged engine, but they control completely different parts of the system.

Wastegate = controls exhaust energy and turbo boost.

Blow-off valve = releases compressed intake pressure when the throttle closes.

For a properly designed high-performance turbo system, both components need to be correctly sized, installed and matched to the engine and turbocharger combination.

Granatelli Motor Sports offers piston-actuated wastegates, water-cooled diaphragm wastegates and high-flow blow-off valves designed for serious street and racing applications.
