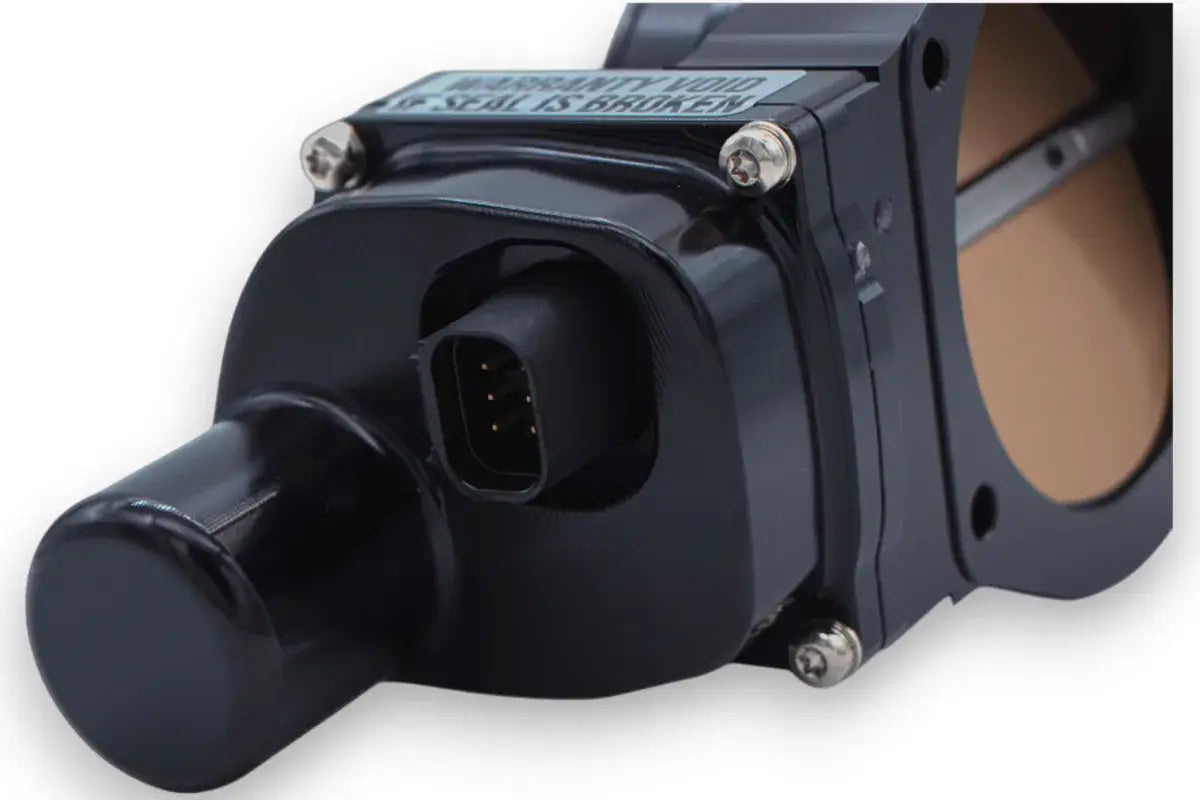

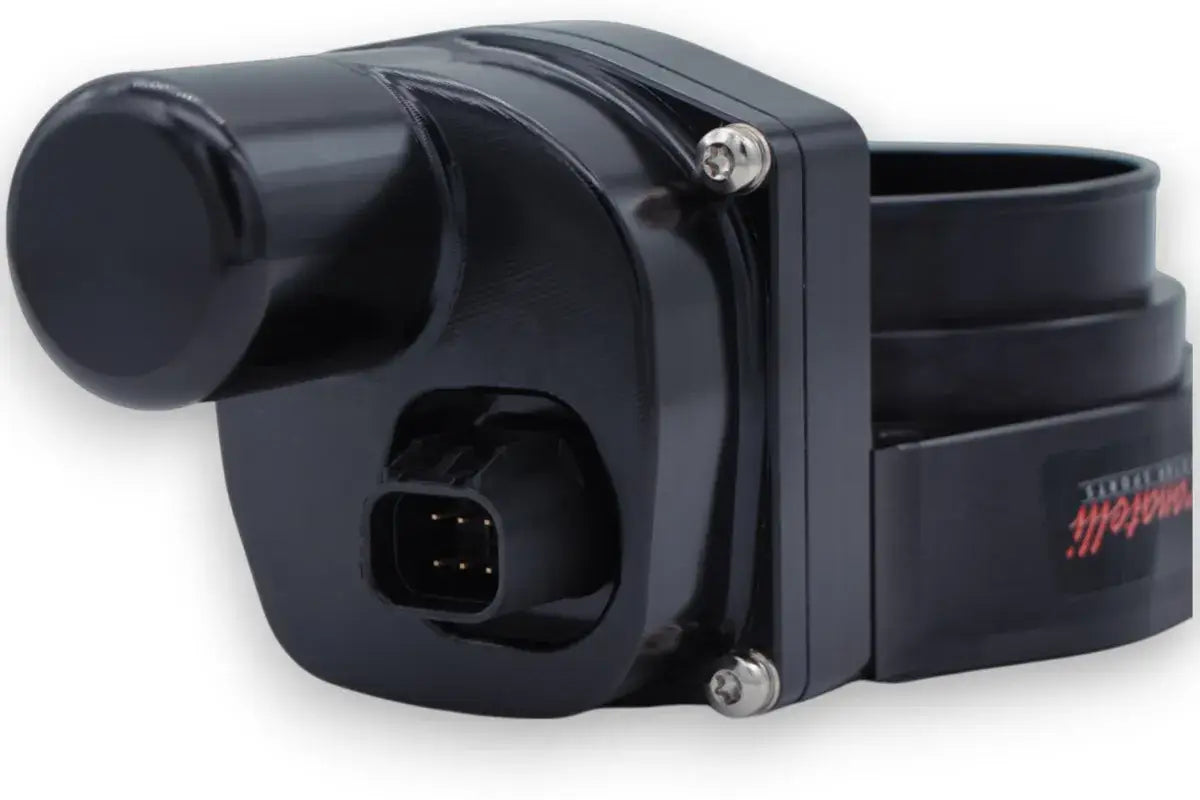

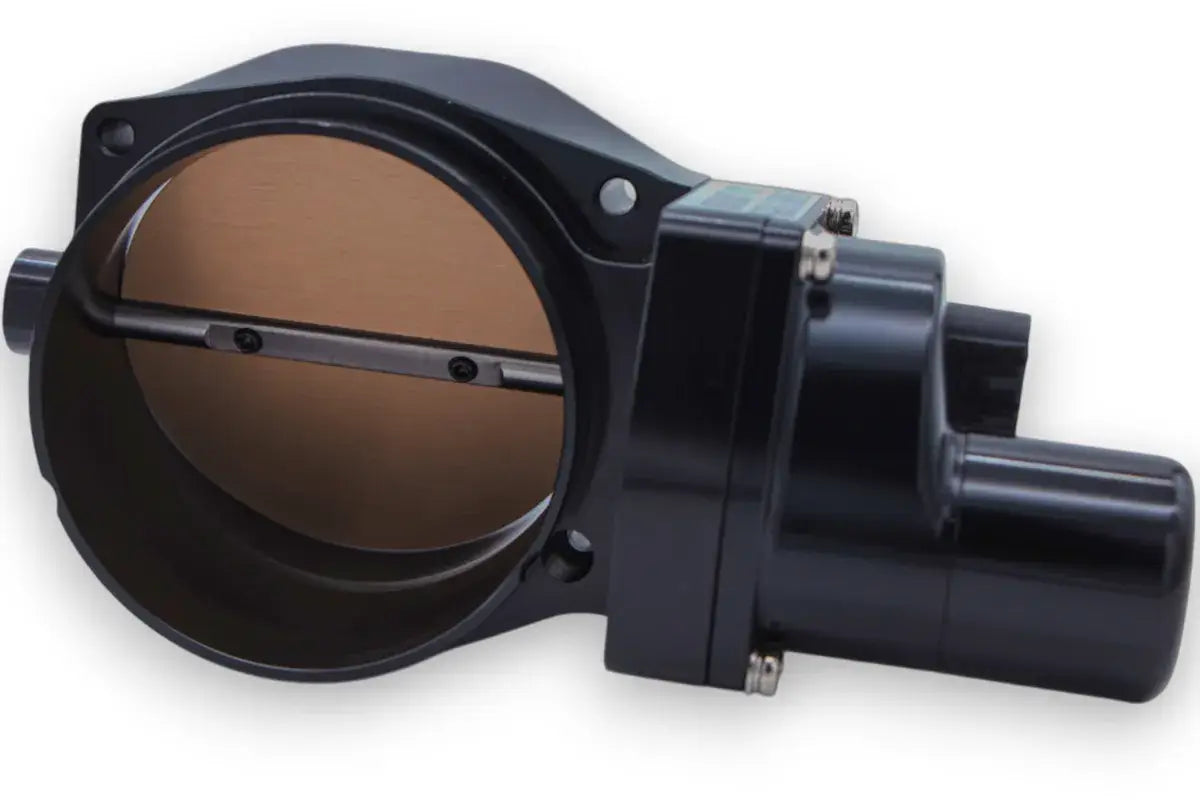

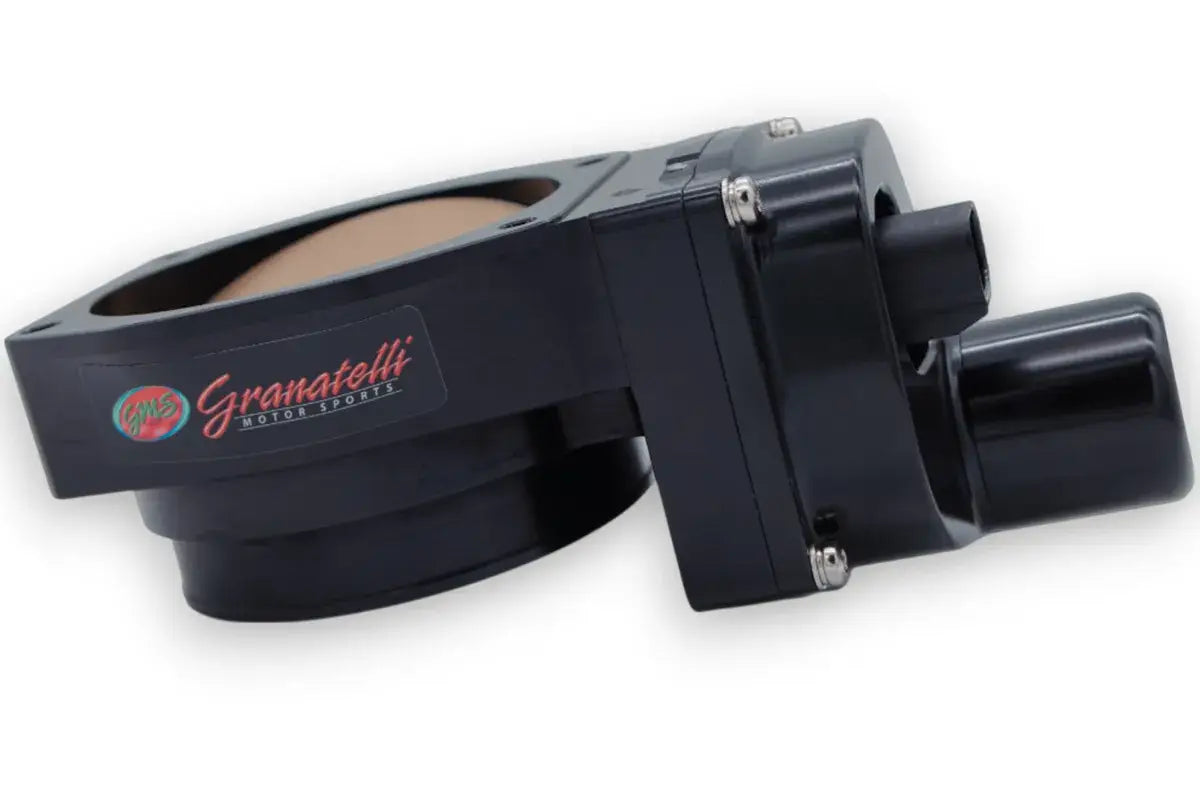

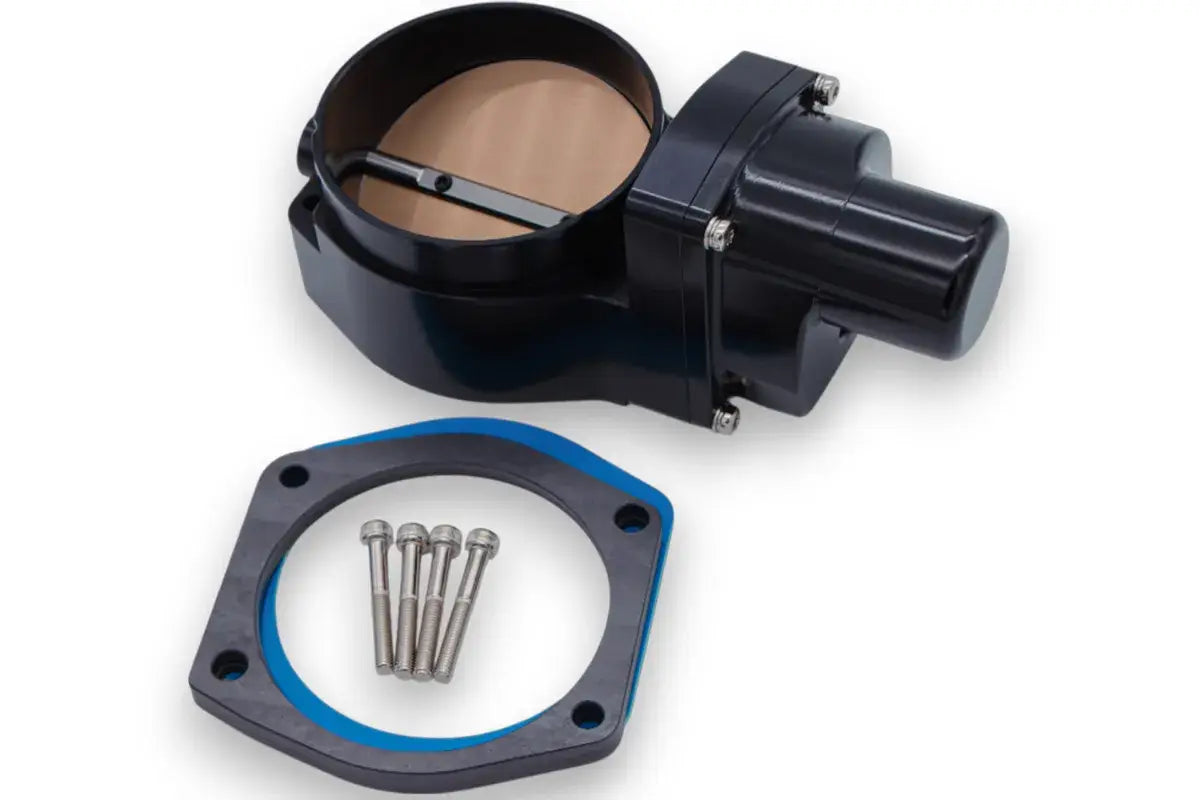

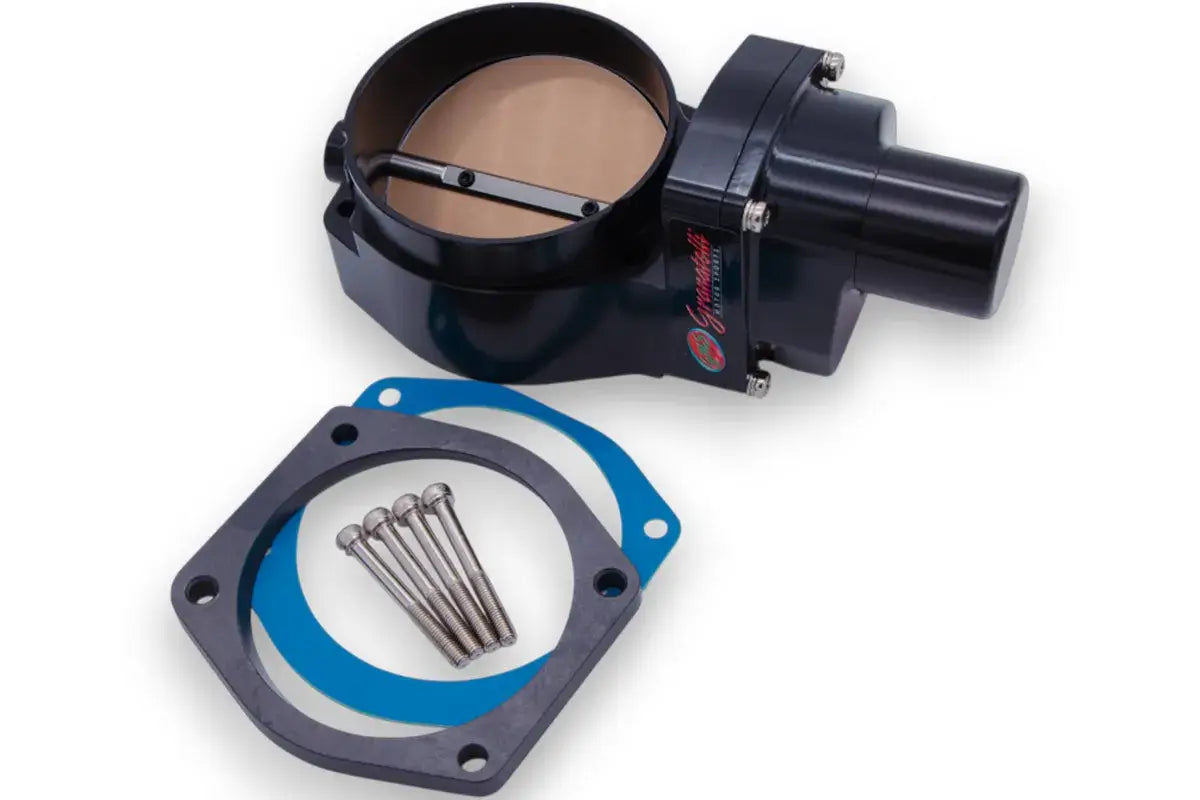

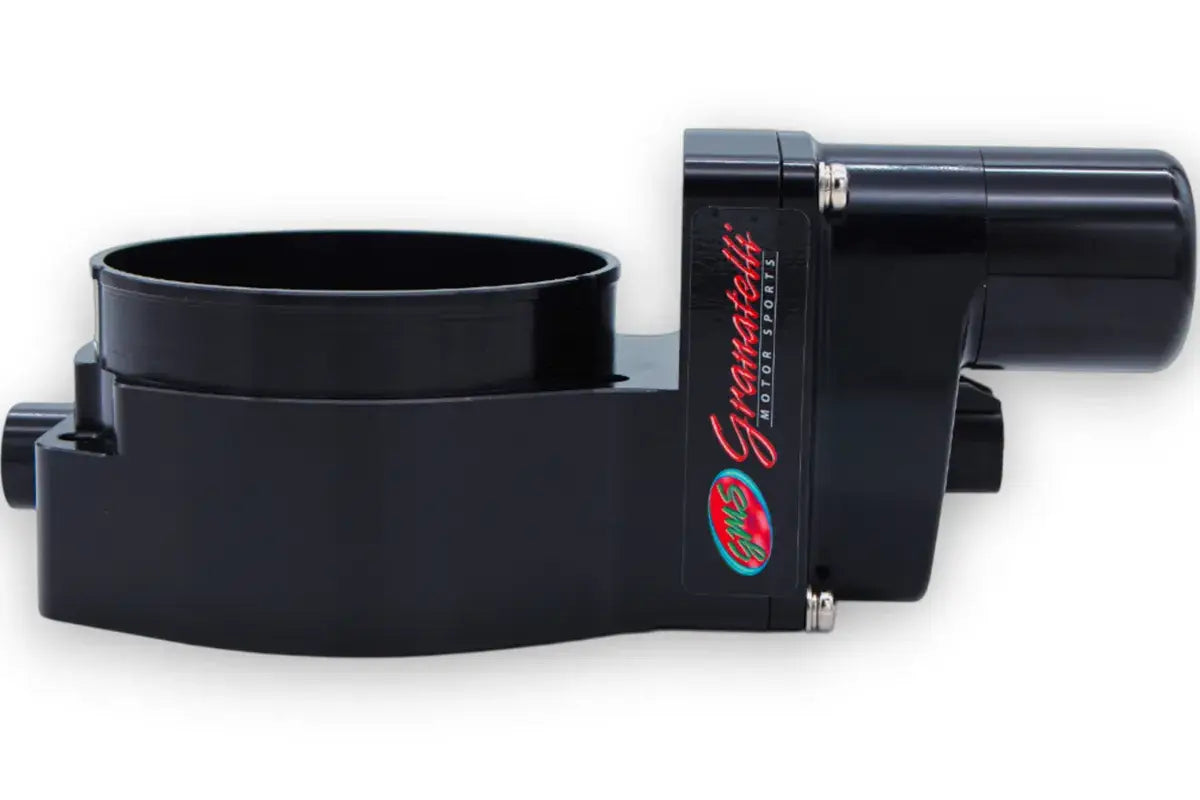

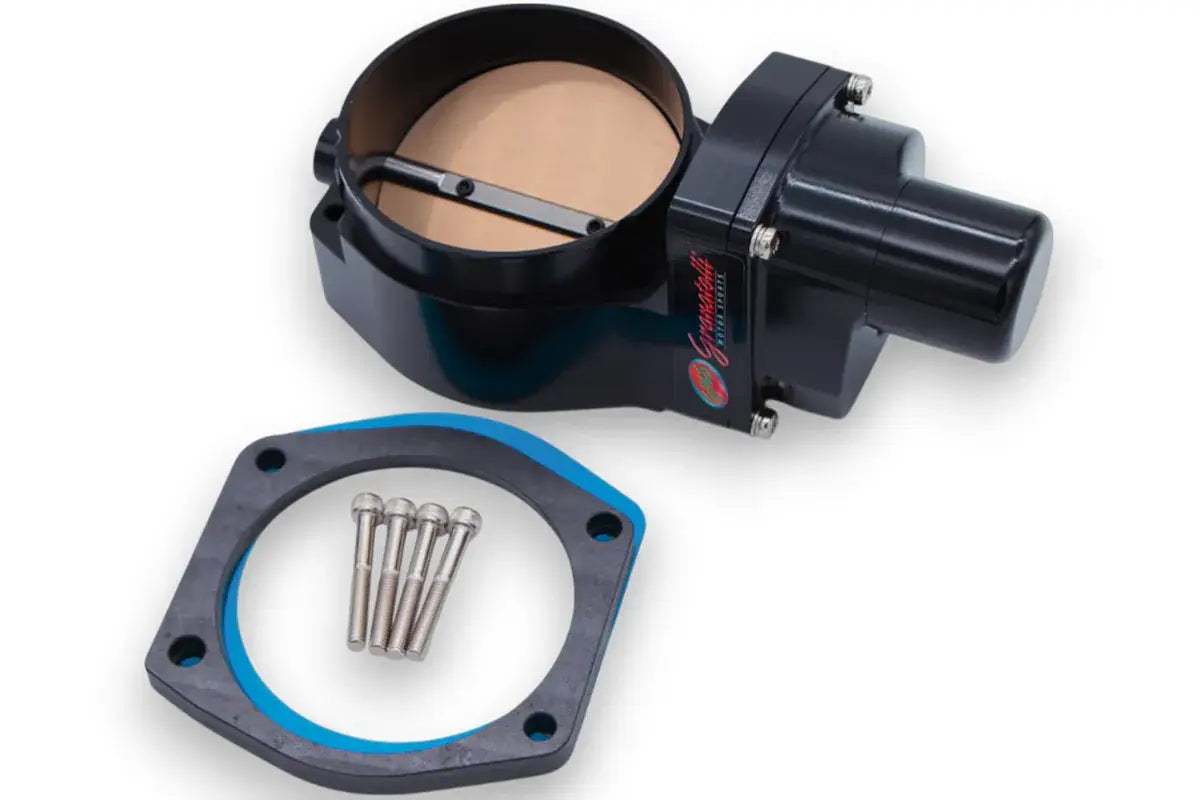

Granatelli GM LS / LSX 103mm Black Billet Drive-By-Wire Throttle Body – GMTBLS3B
Granatelli GM LS / LSX 103mm Black Billet Drive-By-Wire Throttle Body – GMTBLS3B
SKU:GMTBLS3B
In Stock—More than 10 available

Search By Year,Make and Model
Open up your LS intake system with more airflow and a clean black billet finish. The Granatelli 103mm Drive-By-Wire throttle body is built for serious street, strip and boosted LS combinations that need more inlet capacity without giving up modern electronic throttle control.

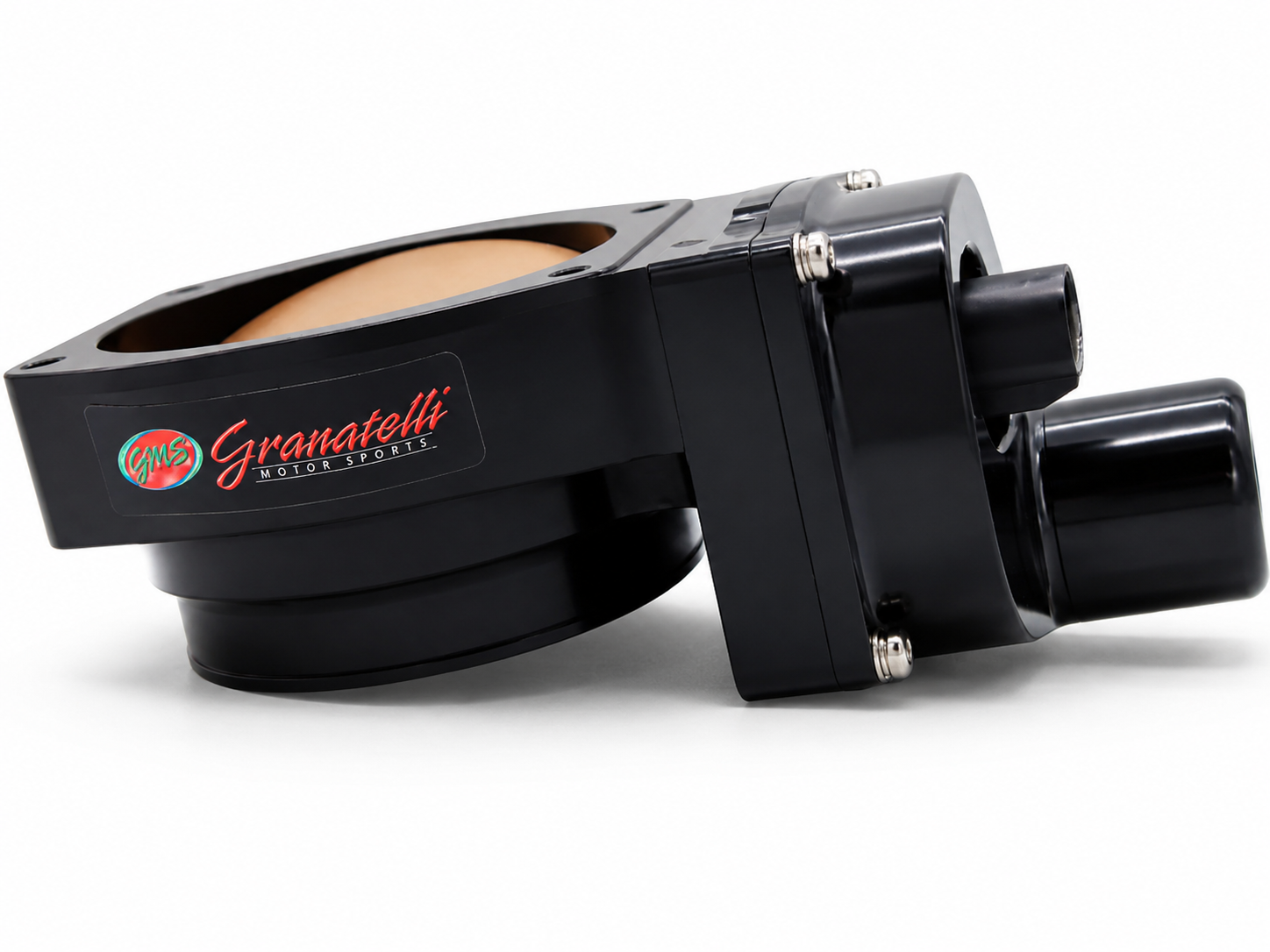

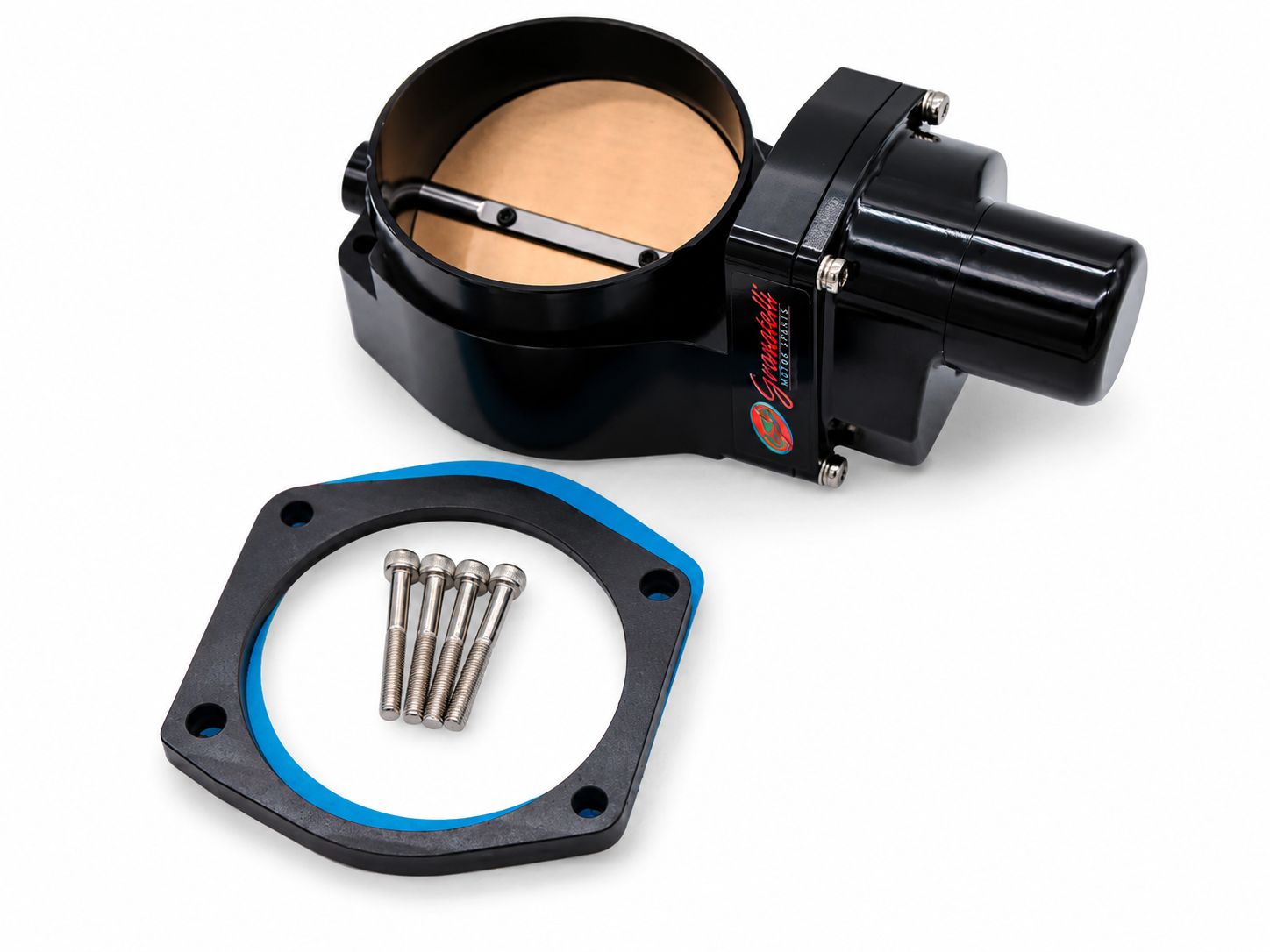

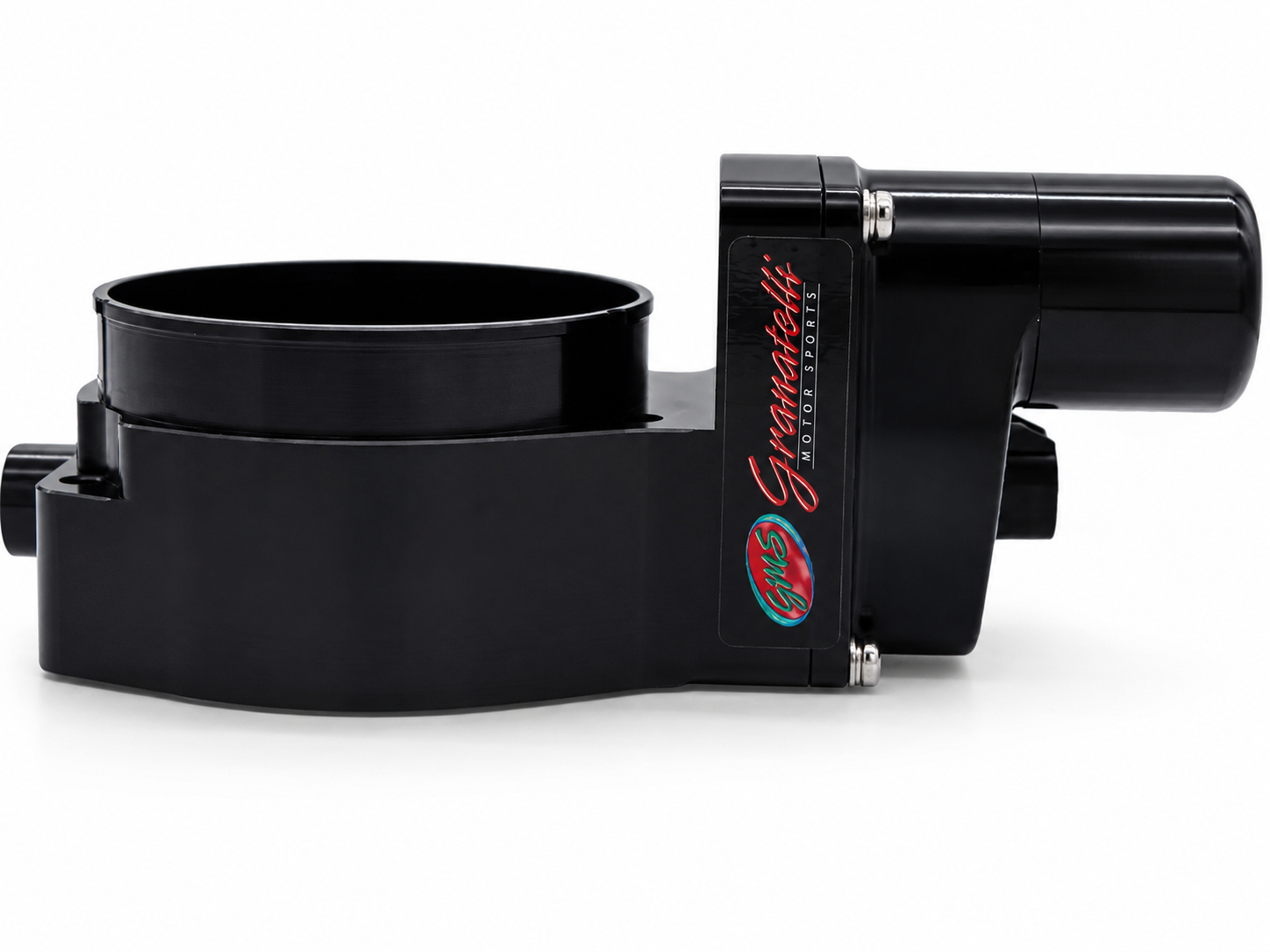

The Granatelli GMTBLS3B 103mm Drive-By-Wire Throttle Body is precision CNC-machined from 6061-T6 billet aluminum and finished in black for an aggressive high-performance appearance. Its large 103mm bore dramatically increases airflow capacity compared with smaller factory throttle bodies.
Designed for compatible GM LS and LSX applications, the GMTBLS3B works with a factory-style GM 6-pin Drive-By-Wire connector and works with the stock LS3 intake and aftermarket intake manifolds, so no aftermarket intake is required. Its boost-ready design is engineered for both naturally aspirated and forced-induction combinations.
103MM AIRFLOW. BLACK BILLET. BUILT FOR BOOST.
UP TO 35 PSI • DRAW-THROUGH OR BLOW-THROUGH
Granatelli's 103mm DBW throttle body is engineered to dramatically increase airflow while maintaining responsive electronic throttle operation on high-performance naturally aspirated, supercharged and turbocharged LS builds.
Key Features
- Large 103mm throttle bore for dramatically increased airflow
- Designed for high-performance GM LS & LSX applications
- Electronic Drive-By-Wire throttle control
- Uses a factory-style GM 6-pin DBW connector
- Precision CNC-machined from 6061-T6 billet aluminum
- Black finish for a clean, aggressive performance appearance
- Engineered to handle up to 35 psi of boost
- Suitable for both draw-through and blow-through forced-induction configurations
- Designed to improve engine response and drivability throughout the RPM range
- Direct-fit electronic design — no need to transfer internal components from the original throttle body
- Works with all intakes: fits the stock LS3 intake or an aftermarket intake manifold, no aftermarket intake required
- Excellent for naturally aspirated, supercharged and turbocharged LS builds
- Ideal for street, strip and high-horsepower performance applications
- Compatible with LS1, LS2, LS3, LS6, LS7, LS9, LSA, LSX, LQ4 and LQ9 applications when the correct DBW configuration is used
- Made in the USA
Tuning Notice: A tune is required for proper electronic throttle operation, drivability and optimum performance.
Trailblazer SS Applications: Trailblazer SS owners should contact Granatelli before ordering to confirm proper calibration requirements.

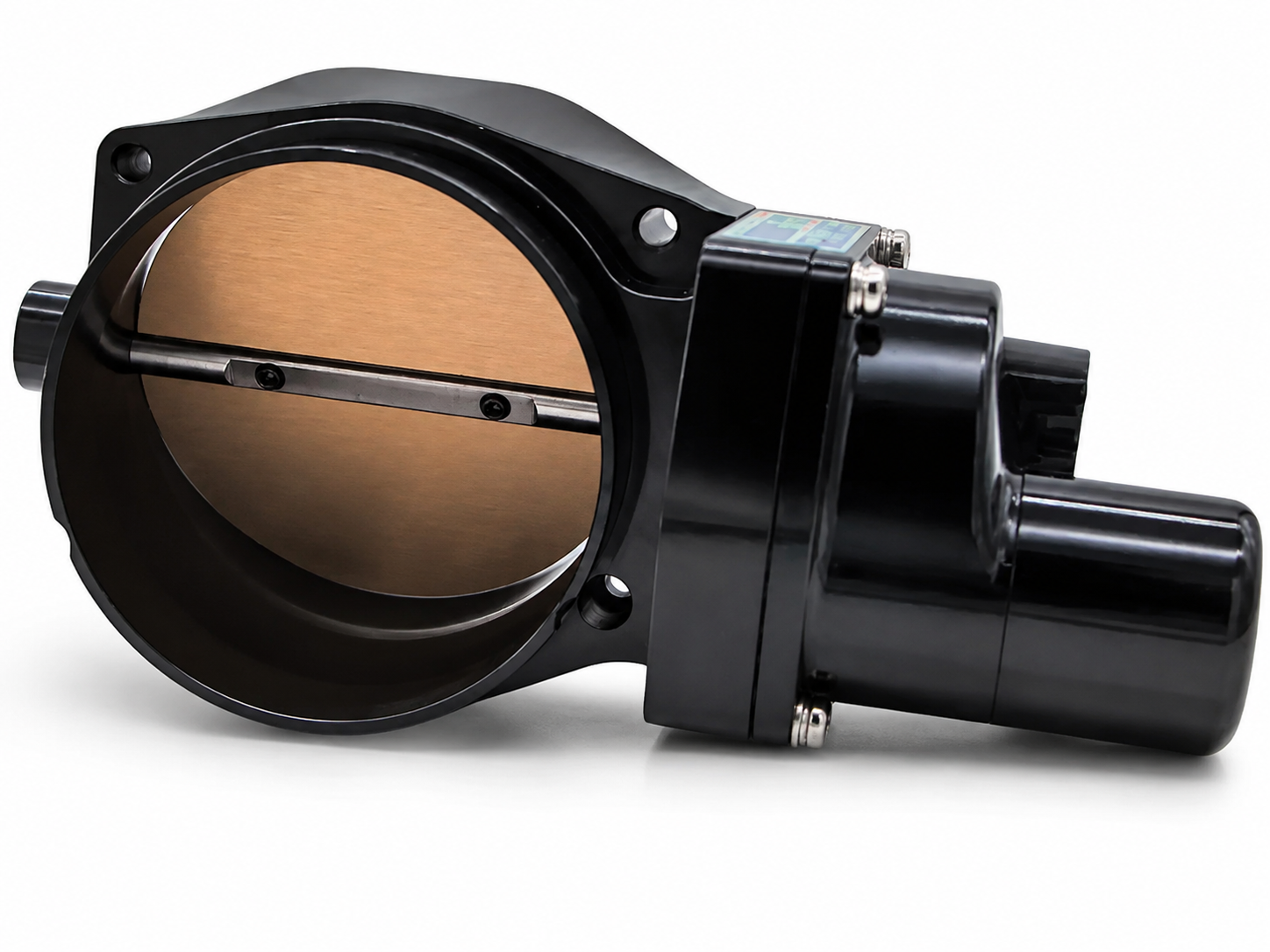

103mm Bore for Serious LS Airflow
As horsepower increases, the engine's demand for air increases with it. The 103mm throttle opening provides substantially more inlet area than smaller factory throttle bodies, helping reduce a potential restriction in high-flow intake systems and allowing compatible LS combinations to breathe more efficiently at higher RPM and load.
Boost-Ready to 35 PSI
The GMTBLS3B is engineered for serious forced-induction use and is rated to handle up to 35 psi of boost. It can be used in both draw-through and blow-through configurations, making it a strong choice for supercharged and turbocharged LS combinations.
Precision 6061-T6 Billet Construction
Each GMTBLS3B is CNC-machined from high-grade 6061-T6 billet aluminum for strength, accuracy and durability. The black finish gives the throttle body a clean, understated appearance while maintaining the premium construction expected on a serious performance engine.
Complete Drive-By-Wire Operation

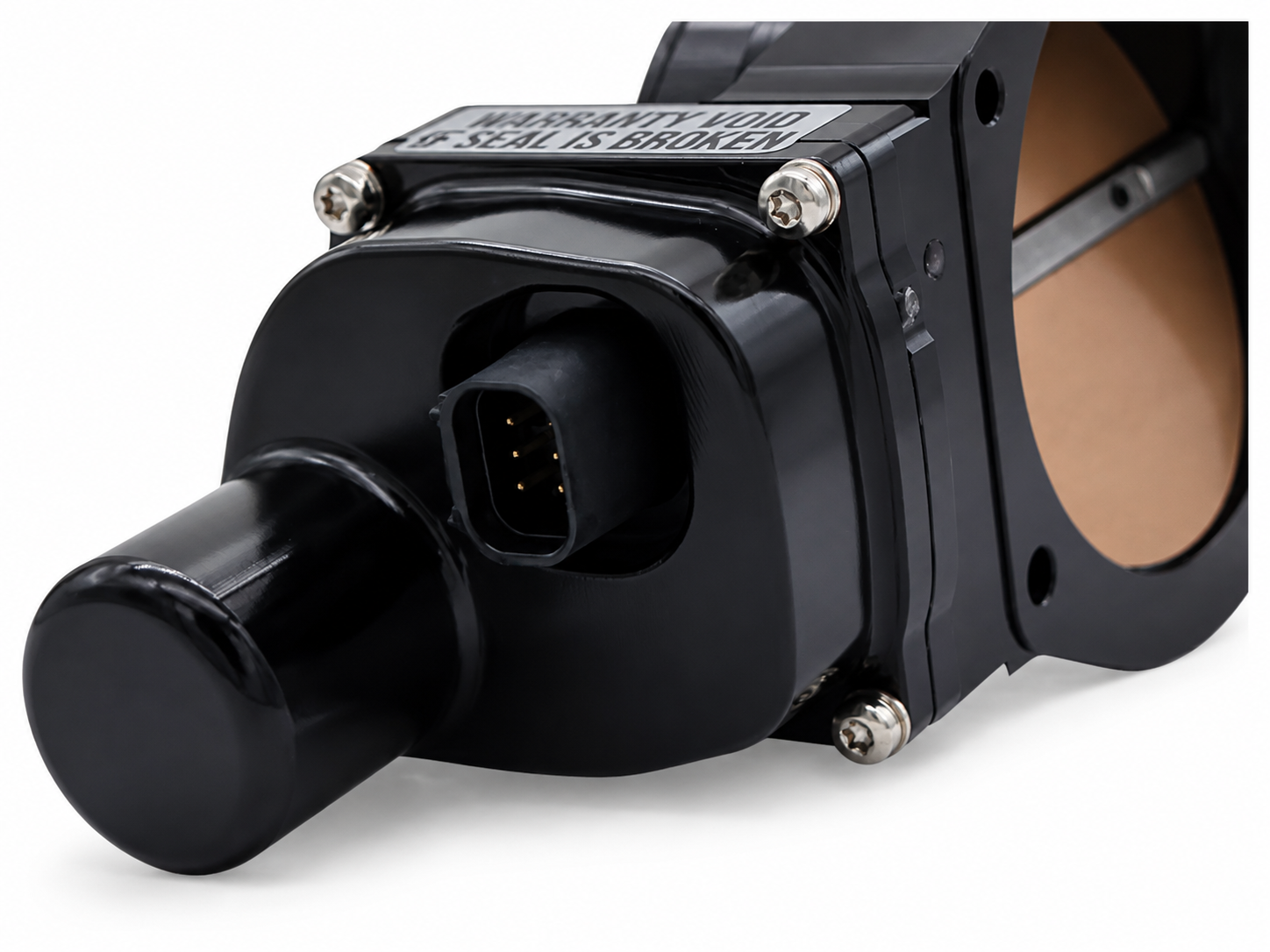

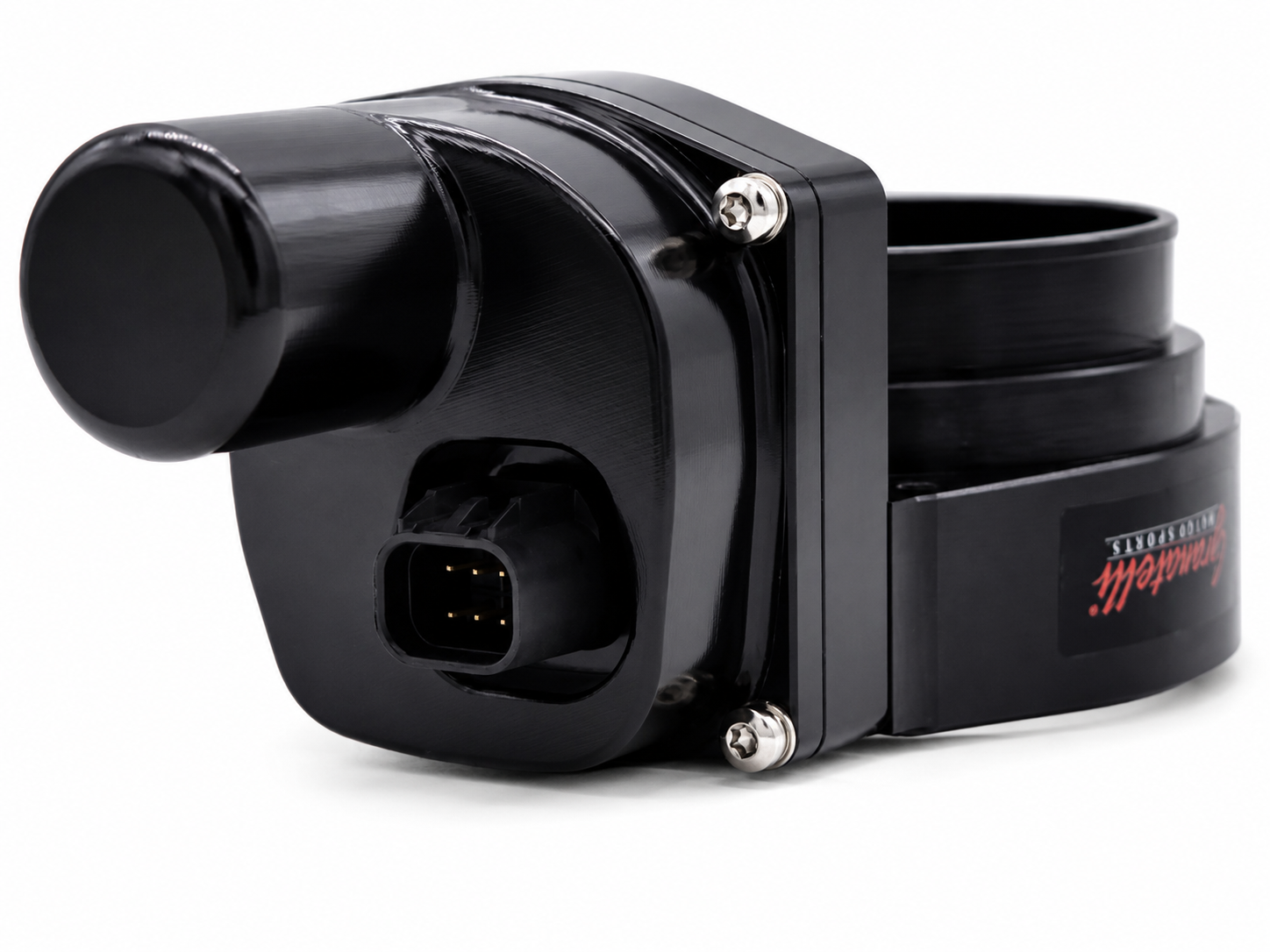

The GMTBLS3B is designed to bolt on without requiring internal components to be transferred from the factory throttle body. Compatible applications use the factory-style GM 6-pin connector, retaining electronic throttle control while increasing available airflow.
Works With the Stock LS3 Intake: No Aftermarket Intake Required
Some 103mm throttle bodies only work once you buy an aftermarket intake manifold. The Granatelli 103mm works with the stock LS3 intake and aftermarket intake manifolds, so you can upgrade from the factory 90mm throttle body now and keep it if you change intakes later. Just check that your intake tube and coupler fit the larger inlet. See how it compares in our Granatelli vs. Nick Williams vs. FAST comparison.
Compatible GM LS & LSX Applications
Designed for compatible GM LS applications using the appropriate 6-pin Drive-By-Wire throttle-control system. Granatelli lists compatibility with:
Popular Performance Applications
| Application | Typical Use |
|---|---|
| LS3 / L99 | High-flow naturally aspirated, supercharged and turbocharged combinations |
| LS7 | Large-displacement naturally aspirated and modified performance applications |
| LSA / LS9 | Compatible supercharged applications using the proper intake configuration |
| LSX | Large-displacement and high-horsepower custom engine combinations |
| Turbo / Supercharged LS | High-airflow applications requiring a boost-capable electronic throttle body |
Important Fitment Notice: GMTBLS3B is designed for compatible GM LS and LSX applications using a GM 6-pin Drive-By-Wire throttle-control system. Verify your electrical connector and available clearance before ordering.
Tuning Notice: A tune is required after installation to optimize throttle response, drivability and engine performance.
Trailblazer SS: Trailblazer SS applications require calibration consideration. Contact Granatelli before ordering to confirm proper setup.
