Granatelli GM LS & LT 0-Ohm 10" Blue High-Temp Kevlar-Boot Coil-Near-Plug Spark Plug Wires – 28-1545HTBLB
Granatelli GM LS & LT 0-Ohm 10" Blue High-Temp Kevlar-Boot Coil-Near-Plug Spark Plug Wires – 28-1545HTBLB
SKU:28-1545HTBLB
In Stock—More than 10 available

Search By Year,Make and Model
Your ignition coils are making the power—don't let ordinary spark plug wires waste it. Granatelli 0-Ohm wires are built to deliver maximum available spark energy directly where it belongs: at the spark plug.
The Granatelli 28-1545HTBLB 0-Ohm High-Performance Spark Plug Wire Set gives compatible GM LS and LT engines a direct, performance-focused connection between the ignition coil and spark plug. Whether your engine is stock, naturally aspirated, boosted or heavily modified, these wires are engineered to deliver strong, consistent ignition performance under load.

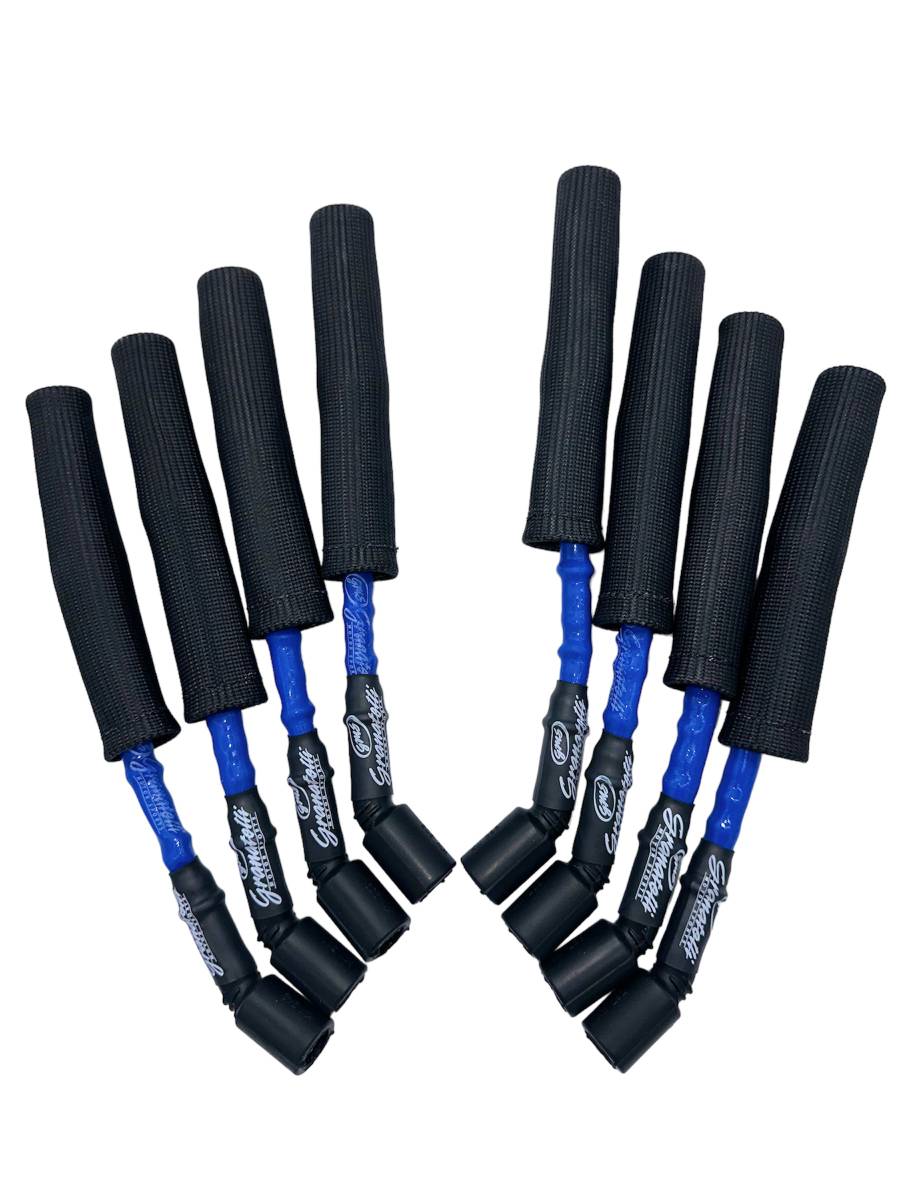

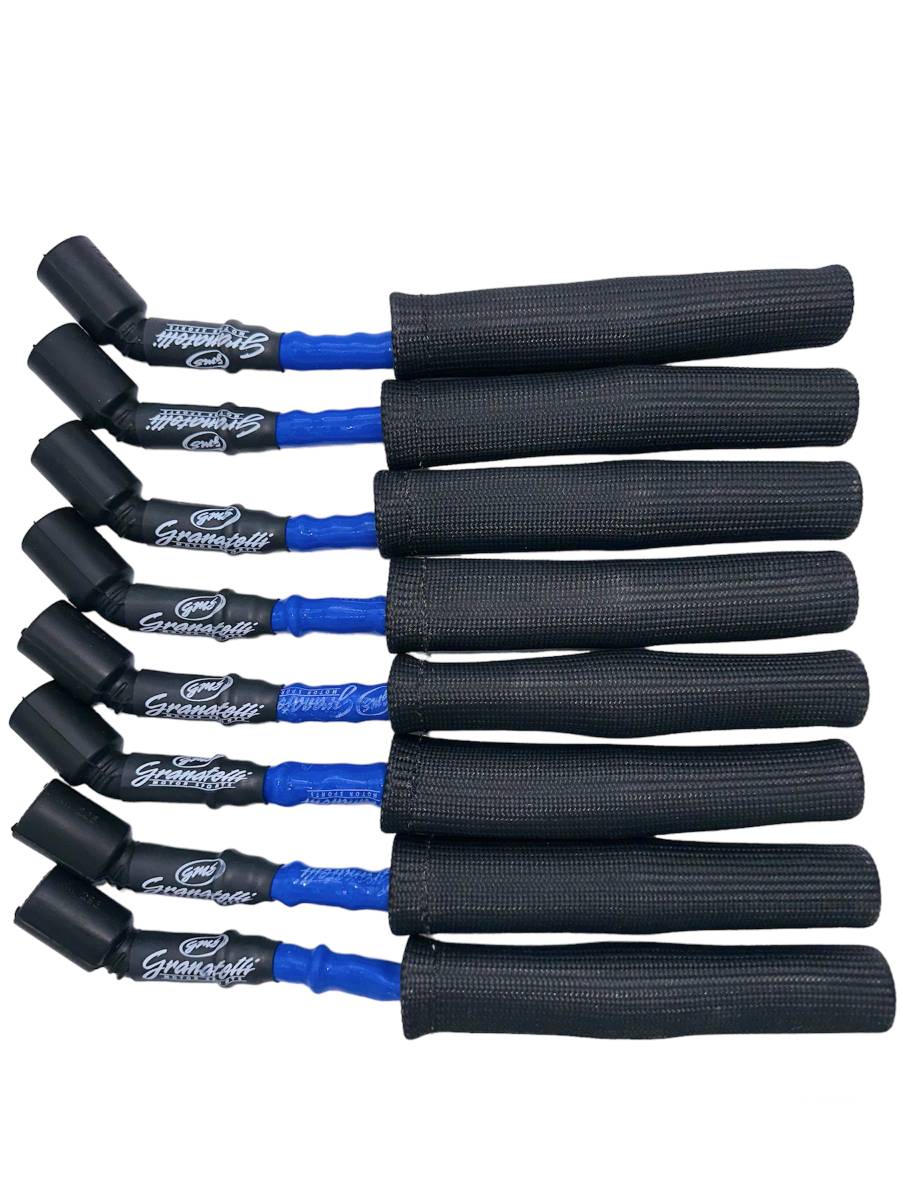

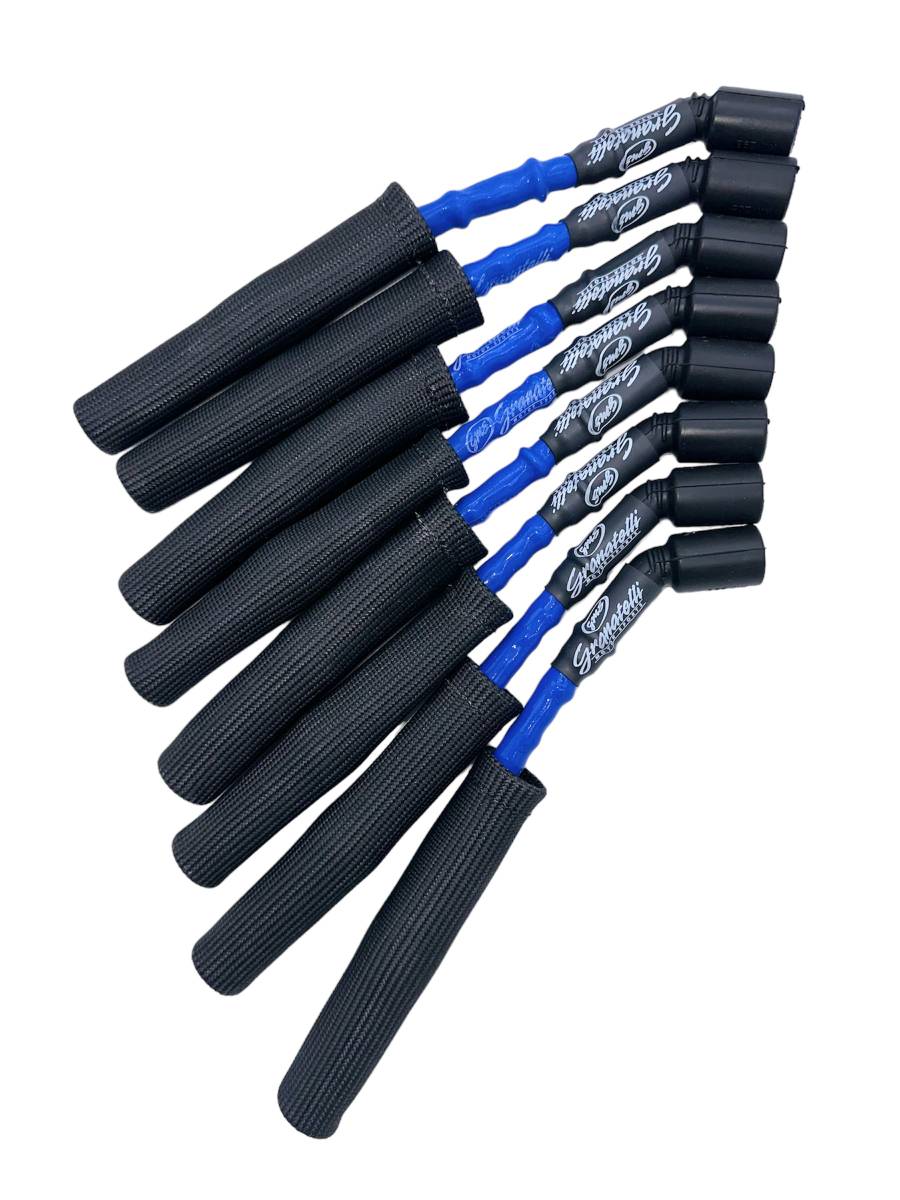

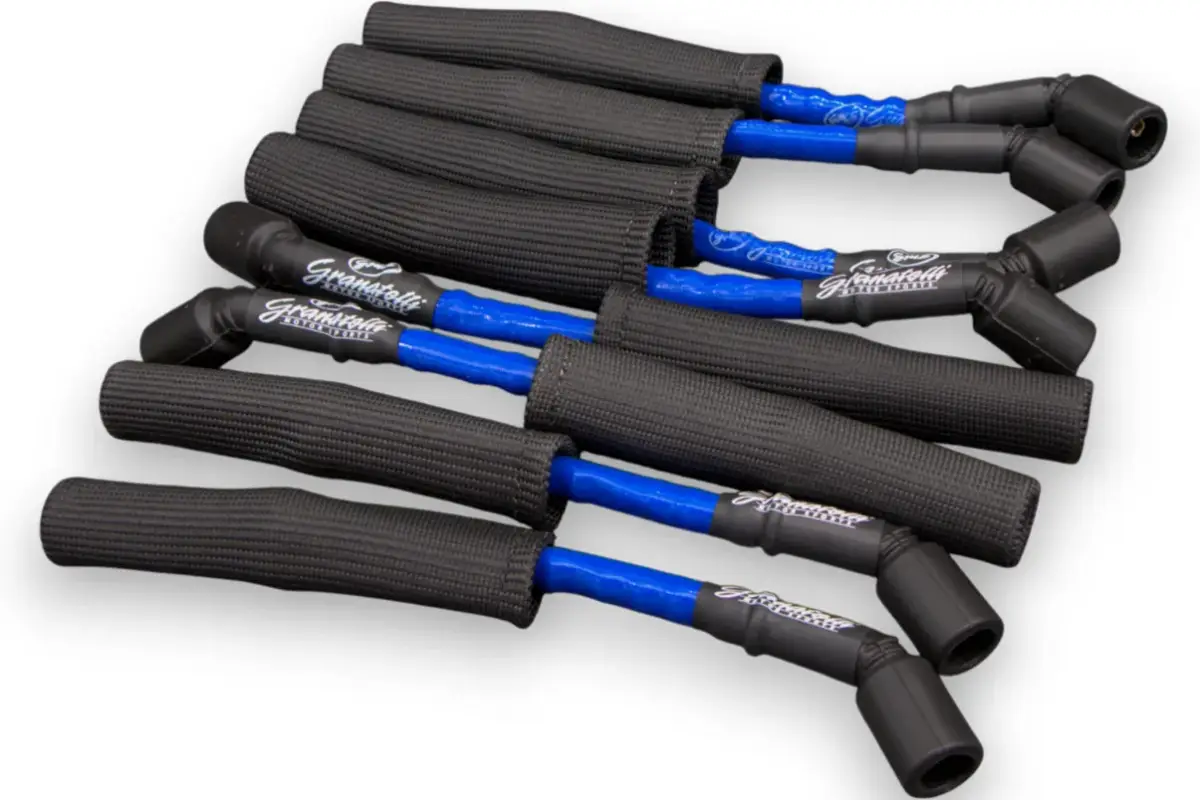

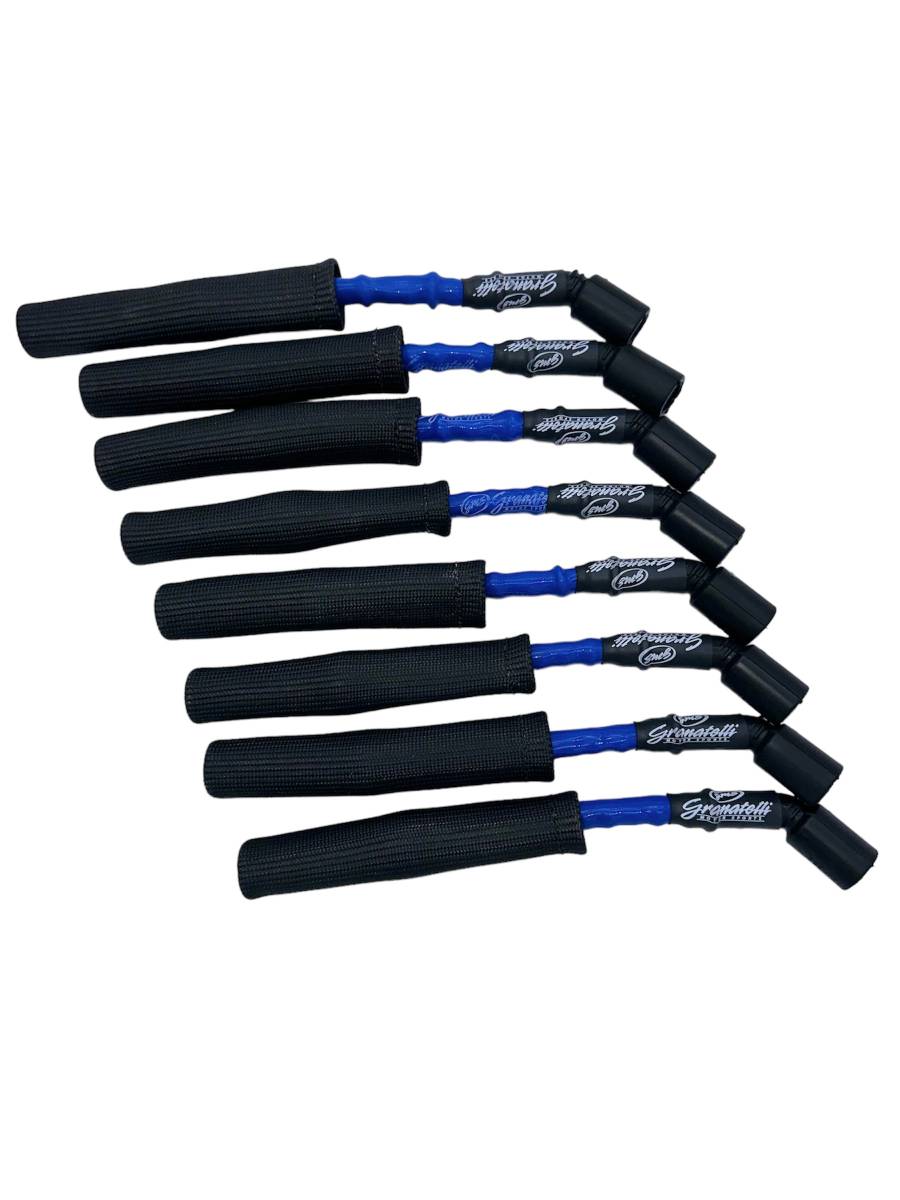

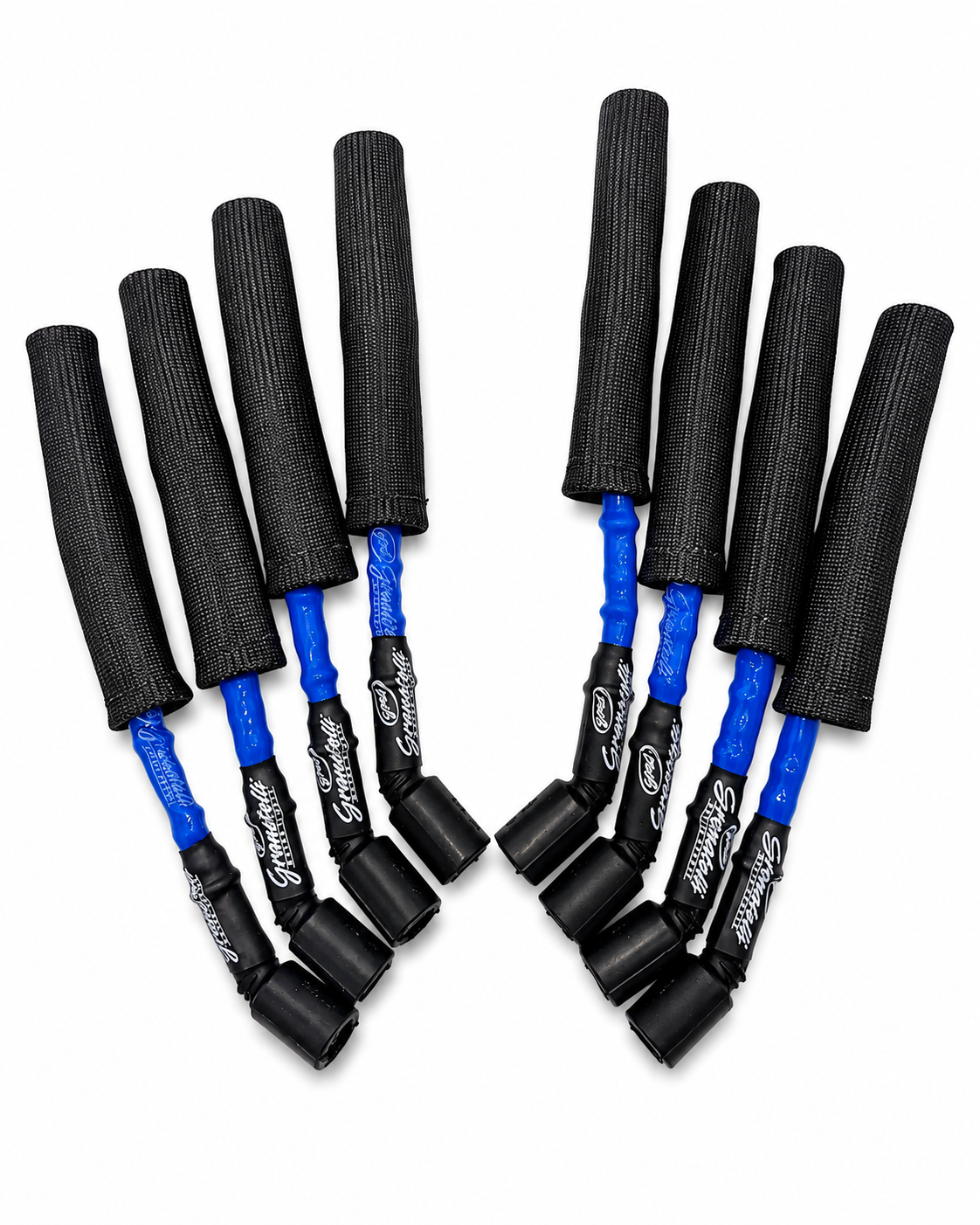

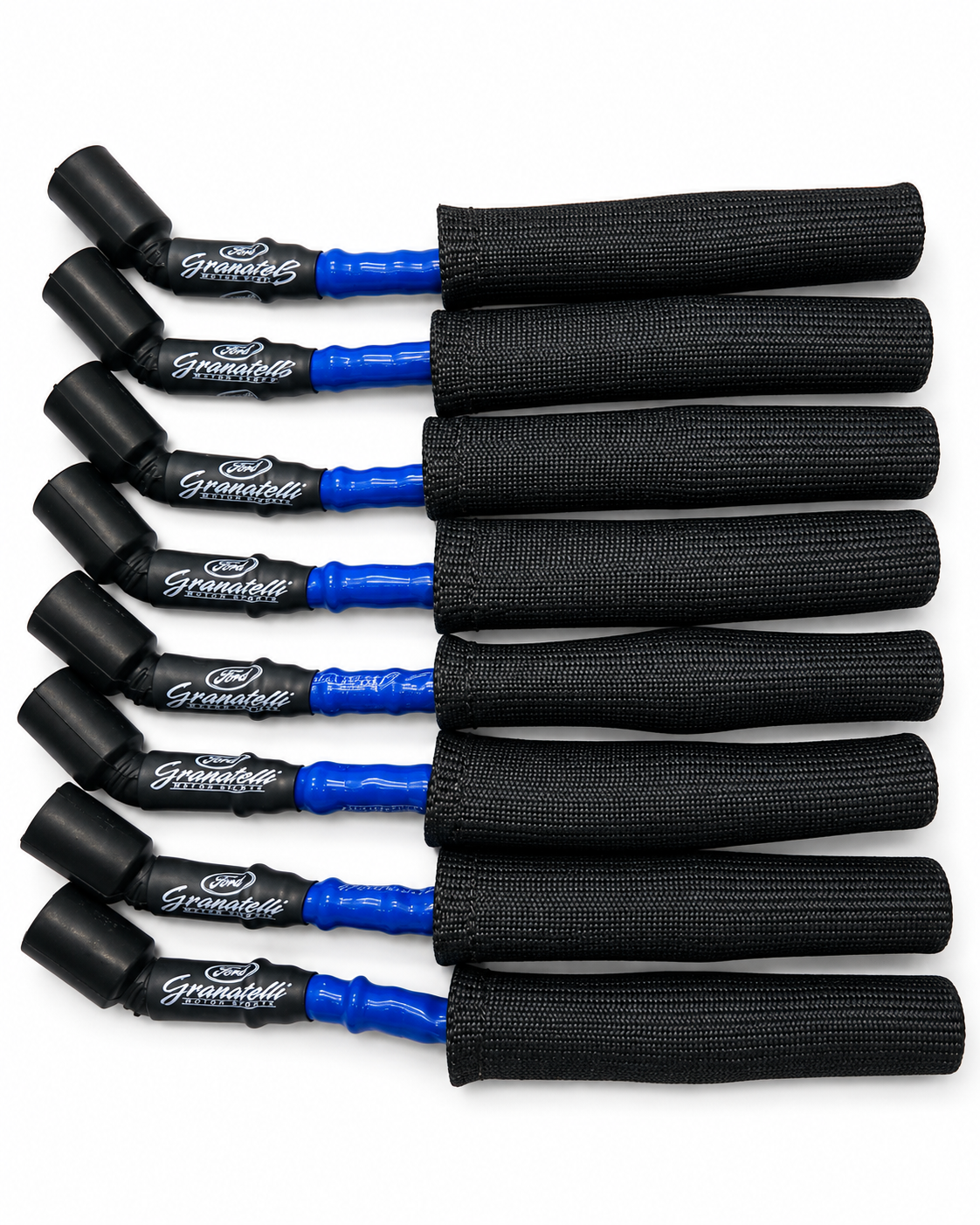

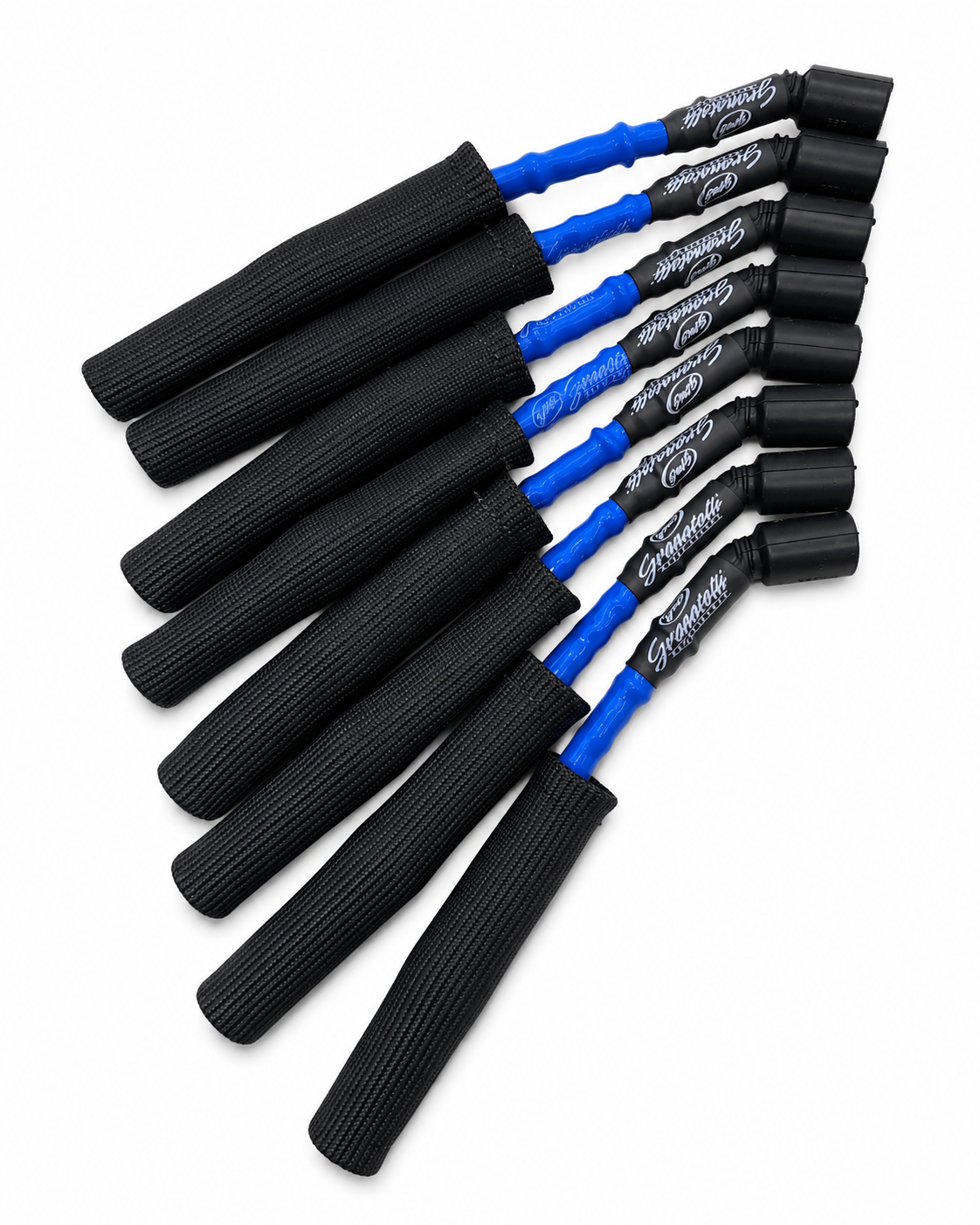

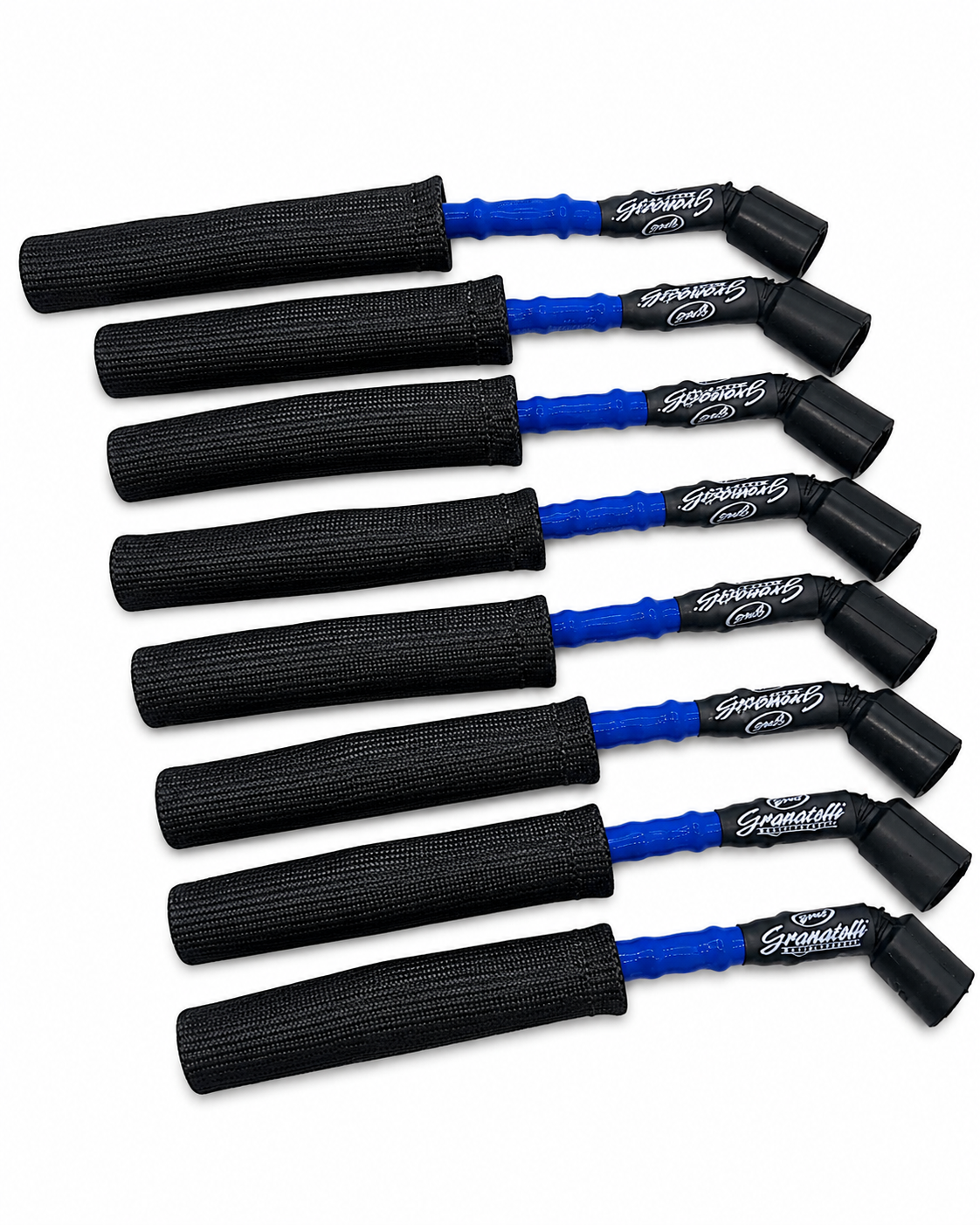

Each wire measures 10 inches from boot end to boot end and features blue high-temperature silicone sleeves with Kevlar spark plug boots, combining serious heat protection with a bold performance look under the hood.
DON'T WASTE SPARK ENERGY.
DYNO-TESTED GAINS ON GM V8 POWER
Granatelli ignition is proven on the dyno. In LSX Magazine's Project C700 test, a ProCharged LT1 Corvette gained 19.26 rwhp and 18.73 lb-ft after switching to Granatelli coils and 0-ohm coil-near-plug wires, with nothing else changed. See the LSX Magazine dyno test. Results vary with the engine, tune and combination.
Key Features
- 0-ohm conductor design for maximum available ignition-energy transfer
- 10" overall length – measured boot end to boot end
- Blue high-temperature silicone sleeves

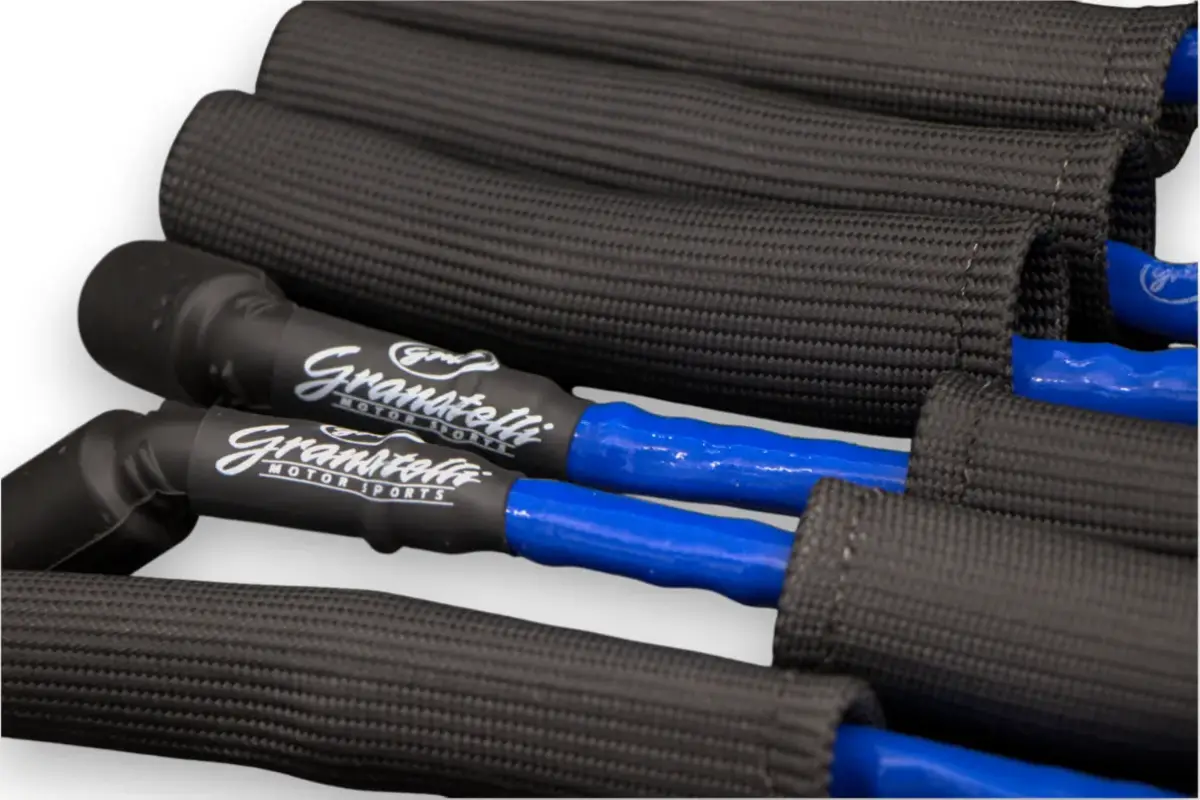

- Kevlar spark plug boots for added heat protection and durability
- 8mm high-performance wire construction
- Stainless-steel spiral-wound core helps suppress EMI & RFI interference
- Designed for compatible GM LS & LT coil-near-plug ignition systems
- Excellent for naturally aspirated, supercharged, turbocharged and nitrous applications
- Ideal for vehicles equipped with aftermarket headers
- Compact 10-inch length helps maintain clean, controlled wire routing
- Pre-assembled and ready to install
- Simple direct-replacement installation
- Complete V8 set – 8 wires
- Made in the USA
Easy Power Upgrade: No complicated ignition conversion and no custom wire assembly. Remove your existing plug wires and replace them with the Granatelli 0-Ohm set. It is a straightforward way to upgrade spark delivery while keeping your factory-style coil-near-plug ignition layout.
Why 0-Ohm Matters
Your ignition coils generate the energy needed to fire the spark plugs. The Granatelli 0-Ohm conductor design is engineered to minimize resistance through the wire, allowing the maximum available coil output to reach the spark plug. That makes these wires especially valuable on performance engines where strong, consistent ignition becomes increasingly important as cylinder pressure and horsepower increase.
Built to Live Next to Headers
Headers, turbo systems and performance exhaust components can create extreme temperatures around the spark plugs. The combination of blue high-temperature silicone sleeves and Kevlar boots adds protection in these demanding areas while helping maintain dependable ignition-wire performance.
Compatible GM LS & LT Engine Families
Designed for many compatible GM LS and LT engines using the correct coil-near-plug layout and 10-inch boot-end-to-boot-end wire configuration.
Common Engine Sizes
| Engine Size | Common Engine Families |
|---|---|
| 4.8L | Compatible LS-based applications using the correct 10" wire configuration |
| 5.3L | Compatible LS & LT-based applications using the correct wire layout |
| 5.7L | LS1, LS6 |
| 6.0L | LS2, LQ4, LQ9, L76 and other compatible LS applications |
| 6.2L | LS3, L92, L99, LS9, LSA, LT1, LT4 |
| 7.0L | LS7 |
Important Fitment Notice: These wires measure 10 inches from boot end to boot end. Engine code or displacement alone does not guarantee physical fitment. Compare your existing wire length, ignition coil location, spark plug boot configuration and routing before ordering.
Heat Notice: The high-temperature silicone sleeves and Kevlar boots provide increased heat protection, but the wires should still be routed with proper clearance from headers and other extremely hot exhaust components whenever possible.
Quick Answers: LS/LT 10" Kevlar-Boot Plug Wires
Do these work with LS and LT coil-near-plug setups?
Yes. This 8-wire set is made for GM LS and LT coil-near-plug ignition and measures 10 inches boot end to boot end. Compare your current wire length and coil location before ordering.
What makes Granatelli wires 0-ohm?
Every Granatelli plug wire uses the same 8mm, 0-ohm stainless-steel-dipped copper spiral-wound conductor with patented RFI/EMI suppression (U.S. Patent 7,185,622). Sets differ only by color and heat protection.
How much heat can they take?
Granatelli high-temp (HT) wires like this set are rated for 800°F+ radiant heat (the standard silicone jacket is rated to 500°F). The Kevlar boots add extra heat protection at the plug. Keep wires routed with clearance from headers where possible.
What is the warranty?
Granatelli spark plug wires carry a 1-year warranty, with optional 1-, 2- or 3-year extended coverage. Made in the USA in Oxnard, California.
What are the Kevlar boots rated for?
Granatelli Kevlar spark plug boots are rated up to 1,200°F radiant heat, adding protection right at the plug where headers run hottest.
Do these work with IGN1A smart coils?
No. Granatelli LS wires do not work with IGN1A smart coils; those coils need a custom wire set. Call 1-805-486-6644 (Mon–Fri, 8am–5pm PT) for help.
What boot angle do these have?
Straight. Granatelli 28-1545 LS wire sets use a straight boot.
