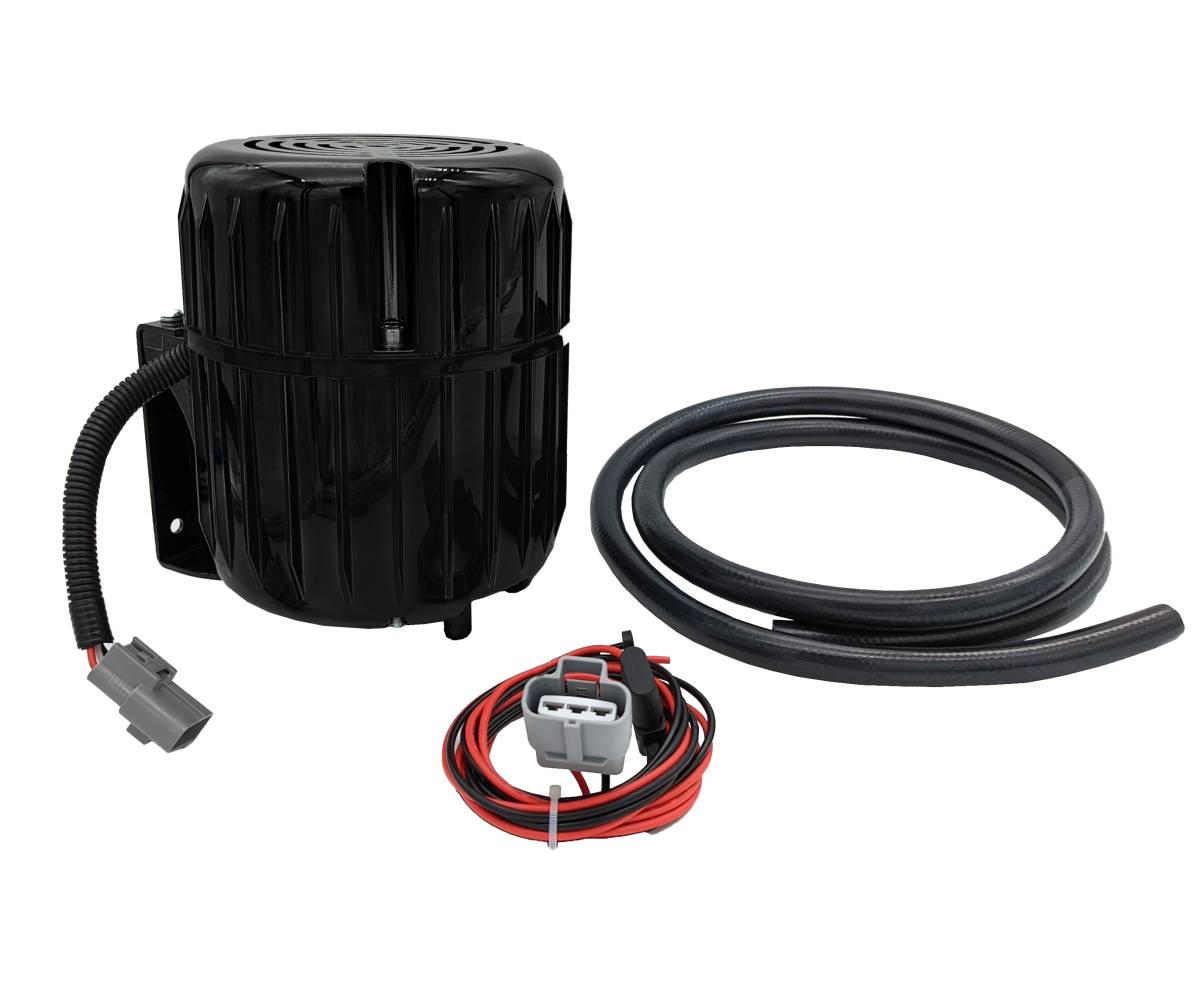

Granatelli 12-Volt Electric Brake Vacuum Pump Kit - Black – 410101B

GRANATELLI 12V VACUUM SUPPORT SYSTEM

CAMMED. BOOSTED. ENGINE-SWAPPED. YOUR BRAKE BOOSTER STILL NEEDS VACUUM.

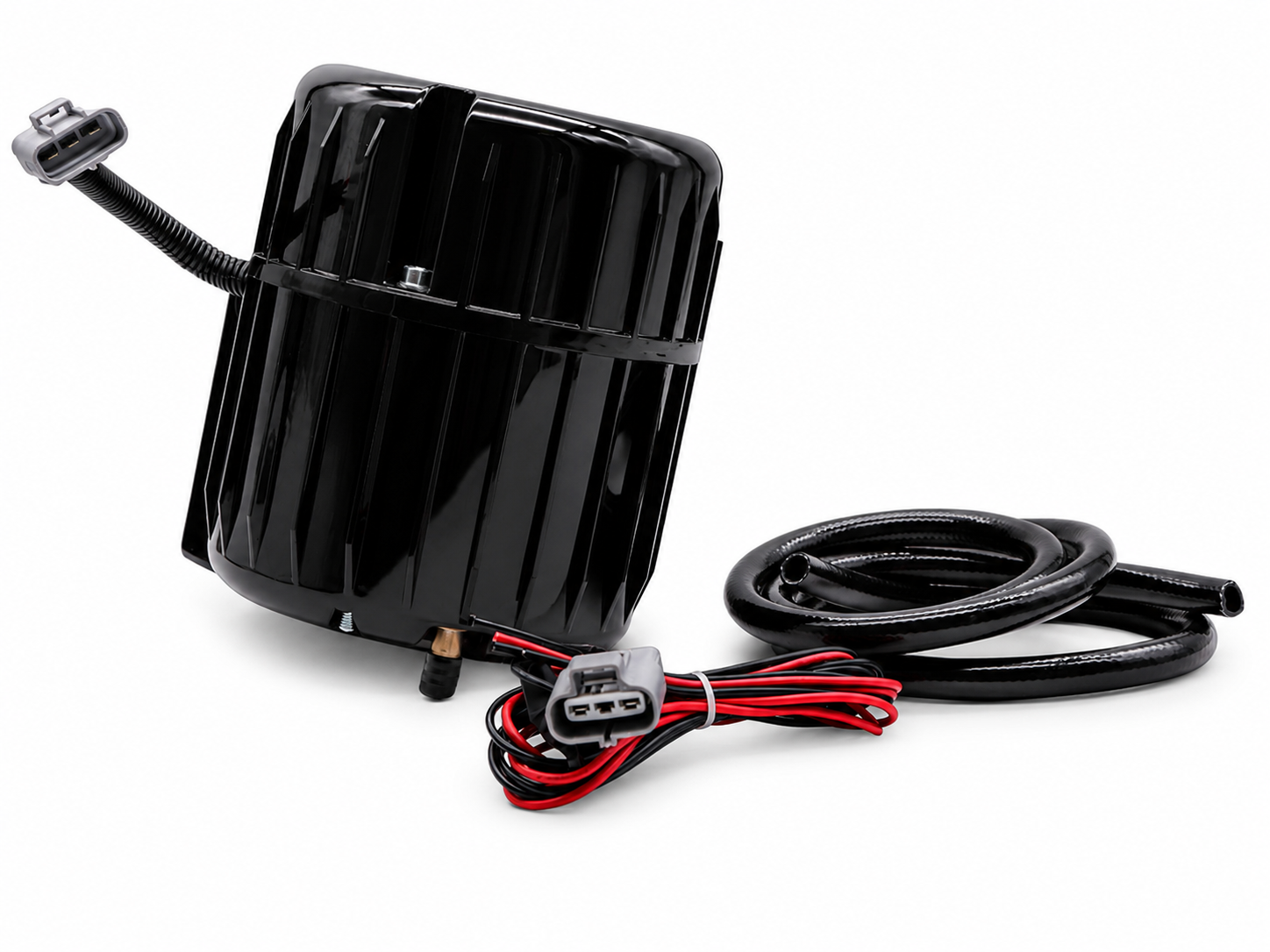

The Granatelli 410101B 12-Volt Electric Brake Vacuum Pump Kit is an auxiliary electric vacuum pump for cars that provides supplemental vacuum for power brake boosters when engine vacuum is too low or inconsistent for dependable brake assist.

Designed for cammed vehicles, turbocharged and supercharged combinations, LS swaps, street rods and custom builds, the system automatically activates when vacuum drops and shuts itself off once the proper vacuum level is restored.

THE PROBLEM IT SOLVES

Low Engine Vacuum Can Reduce Brake Booster Assist

Cammed engines, forced-induction systems and certain modified engine combinations can produce less or less-consistent manifold vacuum, particularly at idle. The 410101B supplies vacuum independently of the engine to help maintain the vacuum reserve needed by a properly functioning power brake booster.

Automatic Vacuum — Only When the System Needs It

IDEAL APPLICATIONS

Built for Vehicles That Don’t Produce Consistent Vacuum

● Cammed Vehicles   ● LS Swaps   ● Turbocharged Engines   ● Supercharged Engines   ● Street Rods   ● Custom Builds   ● Street / Race Applications

Why the Granatelli 410101B Electric Vacuum Pump?

UNDERSTANDING THE 17–23 inHg RANGE

If It Cannot Reach or Hold Vacuum, Check the Entire System

The 410101B is designed to operate within approximately 17–23 inHg of vacuum. The pump should cycle as necessary to build and maintain vacuum within this range when connected to a properly sealed and functioning system.

If the system cannot reach or maintain the expected vacuum range, that does not automatically indicate a defective pump. Vacuum leaks, a leaking brake booster, faulty check valve, incorrect hose routing, loose fittings or other vehicle modifications can prevent the system from building or holding vacuum. Inspect the complete vacuum system before diagnosing the pump itself.

SMART VACUUM CONTROL

MAVP Sensor Control

Granatelli’s MAVP — Manifold Absolute Vacuum/Pressure — sensor monitors vacuum and controls pump operation without relying on a traditional vacuum-switch-and-relay arrangement, providing automatic control with a cleaner installation.

VACUUM SUPPORT PACKAGE

System Features

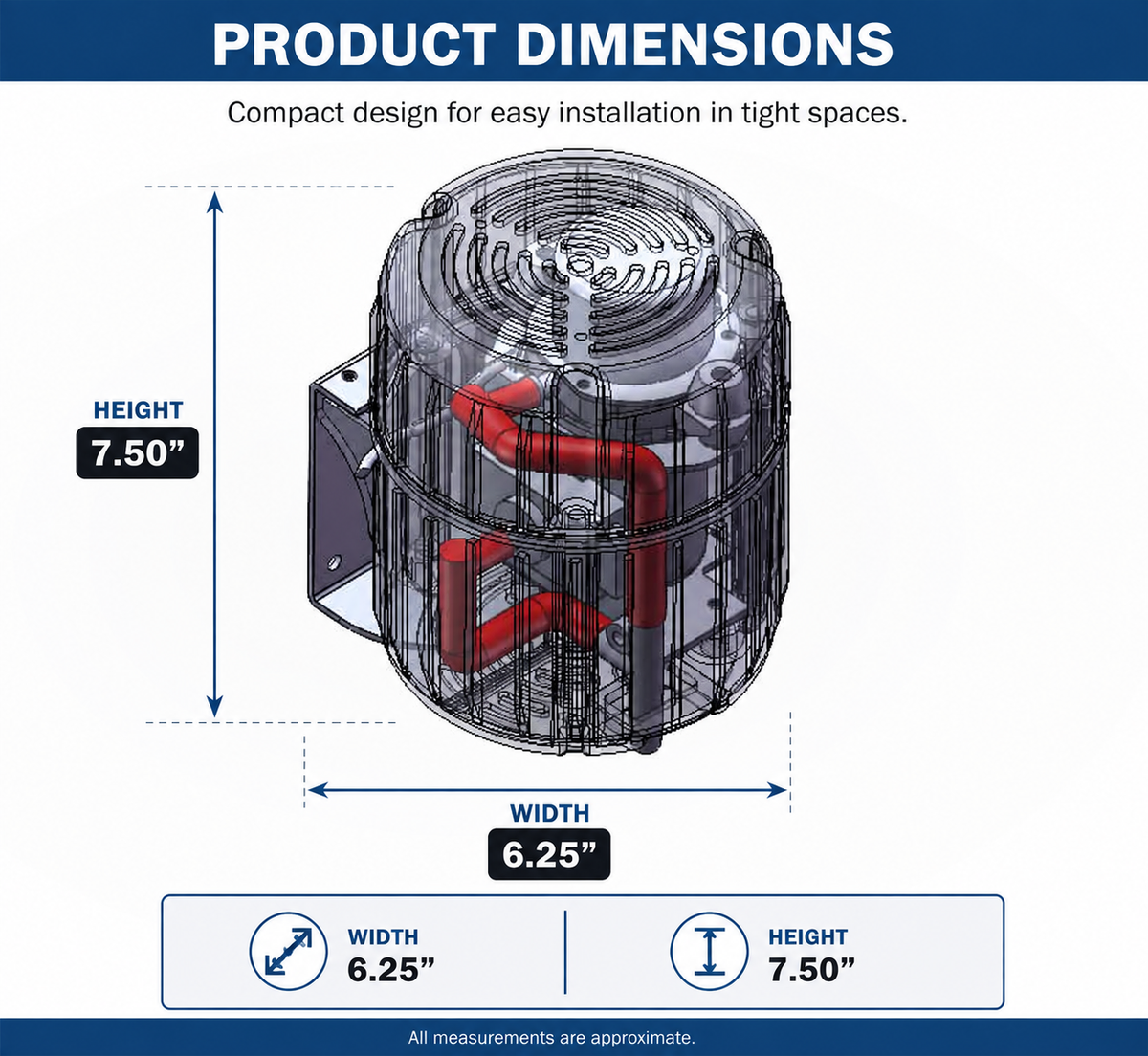

Product Specifications

QUESTIONS WE HEAR

Power Brake Booster Vacuum Pump FAQ

What does an electric vacuum pump do on a car?
It supplies vacuum to the power brake booster independently of the engine. When a big cam, boost or an engine swap leaves too little vacuum at idle for consistent brake assist, the 410101B makes up the difference and shuts off once vacuum is restored.

Do I need a vacuum booster pump with a big cam?
If your engine no longer makes enough steady vacuum for your brake booster, especially at idle, a supplemental vacuum pump is the usual fix. Cammed engines are one of the most common applications for the 410101B.

How much vacuum will it hold?
The 410101B is designed to build and maintain approximately 17–23 inHg in a properly sealed system. Check the requirement for your brake booster, and inspect for leaks if the system cannot reach or hold that range.

Does the pump run all the time?
No. The MAVP sensor switches it on when vacuum drops and off once vacuum is restored.

Is it available in other finishes or as a bare pump?
Yes. See the chrome 12V vacuum pump kit (410102C), the bare pump (410100), or every option in our 12V electric brake booster vacuum pumps collection.

IMPORTANT VACUUM SYSTEM NOTE

The 410101B is designed to supplement a properly functioning vacuum system and operate within approximately 17–23 inHg. If the system cannot reach or hold the expected vacuum level, inspect the brake booster, check valve, vacuum hoses, fittings, routing and vehicle modifications for leaks or excessive vacuum demand before assuming the pump has failed.
