Big Cam, Hard Brake Pedal? Why Performance Engines Can Need an Electric Vacuum Pump

A big cam can make a performance engine sound exactly right while reducing the manifold vacuum the factory brake booster was designed to use.

Granatelli's 410101B 12-volt electric brake vacuum pump supplies supplemental vacuum for properly functioning power-brake systems when engine vacuum is too low or inconsistent.

Why Camshaft Overlap Reduces Idle Vacuum

Aggressive camshaft timing keeps the intake and exhaust valves open together for a longer period. That overlap can reduce intake-manifold vacuum at idle, especially on large-displacement performance engines with long-duration camshafts.

Forced Induction Changes the Vacuum Picture

Turbocharged and supercharged engines can move from vacuum to positive manifold pressure under load. A properly functioning check valve helps preserve booster vacuum, but some combinations recover vacuum slowly or have very little reserve at idle.

How the Granatelli System Works

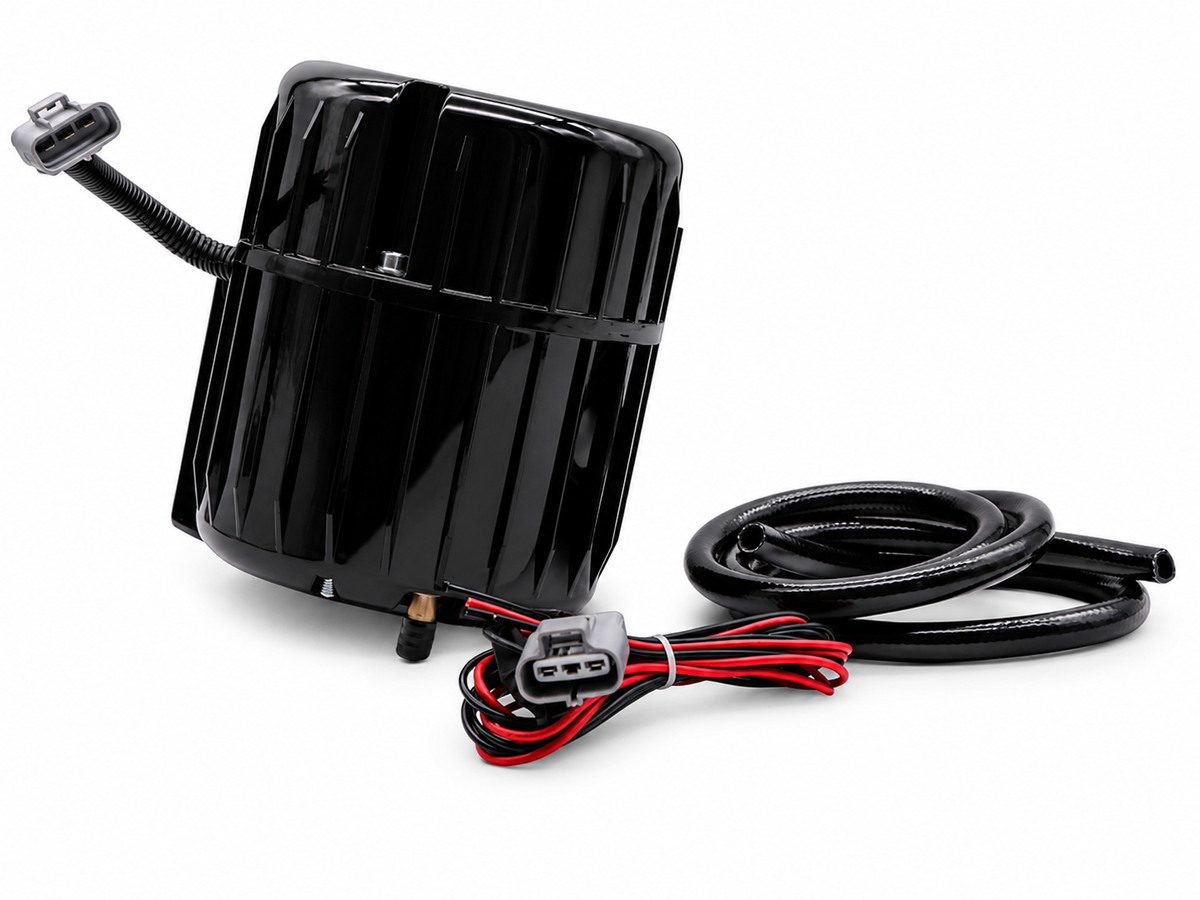

The 410101B uses a 12-volt rotary-vane-style electric pump and automatic control through an MAVP manifold absolute vacuum/pressure sensor. Granatelli lists an operating range of approximately 17–23 inHg.

The pump cycles as needed instead of running continuously when the system is sealed and functioning correctly.

Good Applications

• Cammed LS swaps
• Turbocharged street cars
• Supercharged muscle cars
• Street rods with vacuum-assisted brakes
• Custom engine swaps with limited manifold vacuum

What an Electric Pump Cannot Fix

A supplemental vacuum pump cannot repair a leaking brake booster, failed check valve, hydraulic brake problem or incorrect brake-system setup. If braking performance changes unexpectedly, diagnose the complete system before driving.

Installation Planning

Choose a location with airflow, secure mounting, a protected 12-volt electrical supply and practical hose routing. Keep the vacuum line away from exhaust heat and moving components.

The Bottom Line

Performance engine modifications can change the vacuum available to the brake booster even when the engine itself runs perfectly.

When a properly functioning vacuum-assisted brake system needs supplemental vacuum, the Granatelli 12V pump provides an automatic independent source without forcing you to change the engine combination.
