Granatelli ignition coils

Ignition Components

Granatelli Motor Sports Chevrolet Ignition Coils

Granatelli Motor Sports Chevrolet Ignition Coils

Fits LS and LT GM Cars, Trucks and SUV’s.

Increased engine efficiency with improved engine combustion. Gains of up to 15hp have been seen with these coils over stock.  Average gain with no other changes is 6 to 8hp on an otherwise stock vehicle. Gains of up to 35hp have been experienced on heavily modified forced induction applications. Powerful enough to support 2000-plus horsepower forced inductions engines yet docile enough for everyday use.

Shop GM LS and LT coil packs or read Which Granatelli Coil Pack Do I Need?

Direct OEM replacement, exceeds OEM specifications, OBD-II computer safe
Increases energy to the spark plug exponentially over stock
Adds up to 15HP (Naturally Aspirated) & 35HP (Supercharged, Turbo, & Nitrous)
No resistance, no RFI / EMI interference
Solid stainless connector spring ensures good connection between coil and plug
Available up to 85,000 volts (Malevolent Series), these coils provide double the voltage over factory coils
Improves mileage and throttle response
Will not void factory warranty

Malevolent Series

85k volt (Malevolent Series)

Pro Series Xtreme

65k to 80k volt (Pro Series Xtreme)

Granatelli team

Granatelli Motor Sports Ford Ignition Coils

Granatelli Motor Sports coils increase power to the spark plug up to 400% over stock and are designed to be a direct OEM replacement. They even exceed the OEM specifications; they are OBD-II computer safe, and feature silicone magnetic steel core technology. By optimizing winding process and material diameters, Granatelli Motor Sports was able to double the factory coil output. Brass secondary contacts assure the maximum output from the coil reaches the plug every time. Another great feature, the bodies, brackets and towers are all integrally molded into one unit with brass inserts to relieve compression pressure caused when tighten down the coils.

Shop Ford coil packs for the Coyote 5.0L, 4.6L/5.4L Modular, 6.8L V10 and EcoBoost engines, and see Ford 5.0L coil dyno testing explained.

Direct OEM replacement, exceeds OEM specifications, OBD-II computer safe
Increases energy to the spark plug exponentially over stock
Adds up to 15HP (Naturally Aspirated) & 35HP (Supercharged, Turbo, & Nitrous)
No resistance, no RFI / EMI interference
Solid stainless connector spring ensures good connection between coil and plug
Available up to 65,000 volts these coils provide double the voltage over factory coils
Improves mileage and throttle response
Will not void factory warranty

Check out the different series below.

Ford ignition coils

OEM Series

Granatelli is proud to offer true OEM style replacement coils for all your Ford 1996 to Current. These direct OEM style replacement coils exceed the factory voltage output by 10%, at about 20,000 volts

Street Fighter Series

Street Fighter Series Coils are our 25,000 to 42,000 volt coils on Ford and 60,000 volt coils on GM LS, made for our customers who like using Accel and MSD coils.  These coils will work in conjunction with Accel and MSD, along with OEM coil packs already on the vehicle. Sold individually or as a set for most popular General Motors, Chrysler /Dodge and Ford Applications

MPG/PLUS

These 35,000 volt coils feature the Granatelli Stainless Steel Connectors. MPG PLUS increases miles per gallon up to 15%, increases horsepower and torque, allows easier engine starts and is custom tailored for your vehicle for easy installation. With today’s outrageous fuel costs, this product will pay for itself in no time. Sold as a set for Ford 4.6L/5.4L and 6.8L V10 applications

Hot Street

Granatelli is proud to offer true OEM style replacement coils with more than double the output of stock designs and competitors. These direct OEM style replacement coils exceed the factory voltage output by over 100% offering an incredible 42,000 to 50,000 volt output on Ford applications. Sold as a set for most popular General Motors, Chrysler / Dodge and Ford Applications.  These are the perfect choice for the budget minded gear head looking for noticeable horsepower gains.

Pro Series

Featuring the patented Granatelli Stainless Steel Connectors, Our Pro Series coils, 60,000 to 65,000 volts on Ford and 60,000 to 80,000 volts on GM, provide at least 40,000 more volts than factory coils and are intended for customers and racers alike running hi compressions engines and small nitrous kits. Due to their incredible output they are sold in sets of 8 or 10 and you must run them in every cylinder. Single replacement coils are also available. 0 ohm resistance, no RFI / EMI interference thanks to our patent protected isolator rings. - will not void factory warranty. Sold as a set for most popular General Motors, Chrysler /Dodge and Ford Applications

Pro Series Xtreme

Featuring the patented Granatelli Stainless Steel Connectors, The undisputed KING OF COILS – The Granatelli PRO SERIES Xtreme coils outputs a whopping 65,000 volts on Ford, 65,000 to 80,000 volts on GM and 80,000 volts on Dodge HEMI and are specifically designed for supercharged, turbocharged and high level Nitrous applications where spark blowout from weaker coils is common. 0 ohm resistance, no RFI / EMI interference thanks to our patent protected isolator rings. Sold as a set for most popular General Motors, Chrysler /Dodge and Ford Applications

Granatelli Motor Sports Ignition Wires

Upgrading your engine’s ignition system should be one of the first things on your list of enhancements. Granatelli’s Ignition Wires is an excellent way to boost your power output and increase your fuel economy. GMS wires put out 400% more power to your spark plugs than the OEM wires. They are a must if you have a turbocharger, supercharger or nitrous installed. Granatelli’s patented design ensures compatibility with all fuel injection systems, from race cars to daily drivers.

Shop 0-ohm performance spark plug wires and LS ceramic-boot wires, or see the Spark Plug Wire FAQ.

Direct OEM replacement, exceeds OEM specifications, OBD-II computer safe
Adds up to 5HP (naturally aspirated) & 12-15 HP (s/c, turbo, & nitrous)
0 Ohm resistance, no RFI / EMI interference thanks to patented protector ring
Solid stainless connector cable with stainless snap lock spark plug connectors
High temperature silicone boots, 1200 degree f. boots optional
8MM jacket with fiberglass-reinforced braid resists temperatures up to 500 degrees f
Ideal for use with aftermarket headers and/or turbocharger systems
Over 600 fitments!

Granatelli O ohm wires are patent protected by United States Patent number 7,185,622. This patent covers our unique method of producing ignition wires of extremely low resistance while maintaining very high noise suppression. The benefit of this invention is that full electrical energy from the ignition source is transmitted to the spark plug. The end result of the application of this method is increased horsepower, torque and fuel economy.

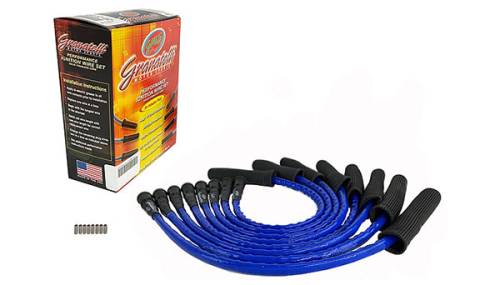

Granatelli ignition wires

Granatelli High Performance Wire Set

GMS wire sets feature an unheard of near “0” ohms resistance per foot. Our patent-pending technology has less RFI/EMI interference than an O.E. set and allows full coil power to reach the spark plug. Numerous Dyno test on a variety of vehicles have shown an increase of as much as 15 HP and 17 lb./ft. of torque at the rear wheels. Easy installation, custom-tailored fit, and OBD-II safe.

MPG Plus Wires

MPG PLUS increases miles per gallon up to 15%, increases horsepower and torque, allows easier engine starts, and is custom tailored for your vehicle for easy installation. With today’s outrageous fuel costs, this product will pay for itself in no time… and best of all, we offer a Money Back Guarantee and Limited 1 Year Warranty.

Featured Ignition Coils & Wires

All Products

-

Shop By Category

View All Categories

Ignition FAQs

Pick the series by how hard you push the engine. Output varies by engine, so always check the kV rating in the product title. Street Fighter (25kV to 60kV depending on engine) and Hot Street (42kV to 50kV) suit stock and mildly modified engines. MPG coils (35kV) are built for Ford 4.6L/5.4L and 6.8L V10 daily drivers. Pro Series (60kV to 80kV) and Pro Series Xtreme (65kV to 80kV) are for high-compression, nitrous and boosted engines. Malevolent (85kV) is the top GM LS and LT1/LT4 coil. Read Which Granatelli Coil Pack Do I Need?

On GM LS engines, Street Fighter coils are rated 60kV, Pro Series Xtreme 80kV and Malevolent 85kV. Higher-output coils are aimed at supercharged, turbocharged and nitrous engines where weaker coils can suffer spark blowout. A higher kV rating does not automatically mean more horsepower on a stock engine. Shop GM coil packs.

The 28-0513 coils fit square-style GM LS engines (LS2, LS3, LS7, LS9, LSA and related). The 28-0514 coils fit the Gen V LT1/LT4. The 28-1680 coils fit 1997–2012 GM 4.8L/5.3L trucks and SUVs with cylindrical coils. The LT1/LT4 uses its own 28-0514 coil, so order by engine, not by series name. See the Ignition Coil FAQ for the full part number guide.

Yes. Complete kits are 28-1815 for 2011–2015, 28-1816 for 2016–2017 and 28-1818 for 2018–2026 Mustang GT and 2018–2021 F-150. Single coils (01818 coil-on-plug, 01819 coil-near-plug) fit 2018–2026 Mustang GT and 2018–2021 F-150. Shop Ford coil packs or read Granatelli Coyote Street Fighter coils.

Yes. Granatelli Motor Sports makes coils for the 5.7L, 6.1L and 6.4L HEMI and the supercharged 6.2L Hellcat. Shop Dodge coil packs.

Results depend on the engine and the rest of the build. In LSX Magazine's Project C700 test, a ProCharged LT1 Corvette gained 19.26 rwhp and 18.73 lb-ft with Granatelli coils and 0-ohm coil-near-plug wires, with nothing else changed. Read Granatelli coils in the press and Ford 5.0L coil dyno testing explained.

Granatelli 0-ohm wires use a spiral-wound, stainless steel–dipped copper conductor with a patented EMI/RFI suppression ring (U.S. Patent 7,185,622), so full coil energy reaches the plug without radio or ECU interference. They have an 8mm silicone jacket and pre-assembled stainless snap-lock terminals. Read What Are 0-Ohm Spark Plug Wires? or shop performance spark plug wires.

Standard wires have OEM-level heat protection. High-temp (HT) wires are rated for 800°F+ radiant heat, and ceramic spark plug boots are rated up to 2,000°F. Kevlar and ceramic boots add more protection near long-tube headers and turbo hot sides. Read Ceramic vs. Kevlar Spark Plug Wire Boots or shop LS ceramic-boot wires.

No. Spark blowout under boost can come from the coils, but plug gap, worn plugs, damaged boots, loose connectors and fuel or mechanical problems can cause the same symptom. Check those first. Read Spark Blowout or Something Else?

Granatelli ignition coils and spark plug wires carry a 1-year warranty, with optional extended coverage at checkout. Orders placed before 3:30 PM Pacific ship the same business day, and website orders over $100 ship free.
